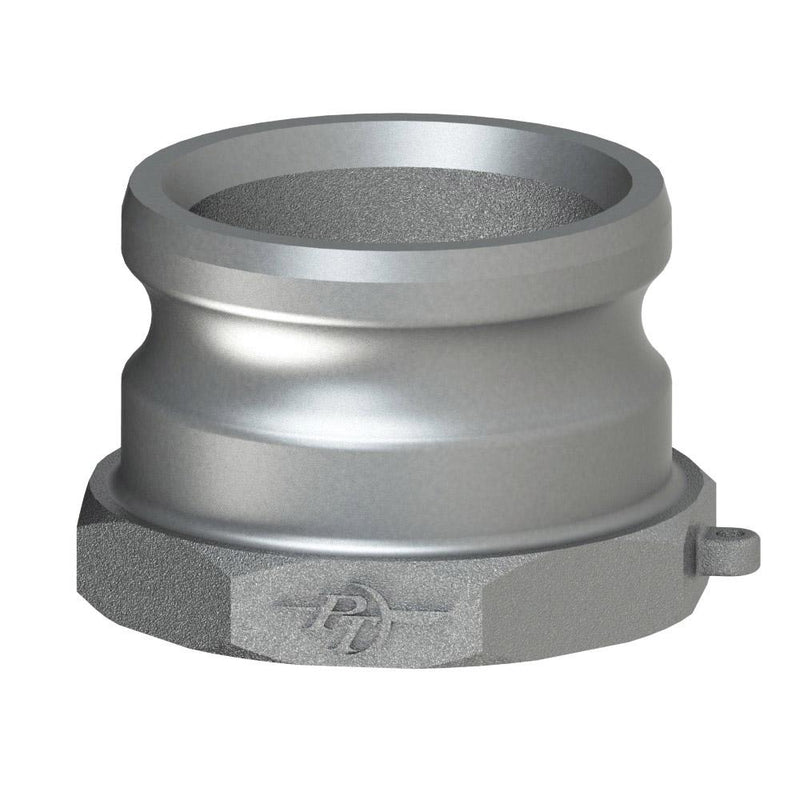

2200110 (10A) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type A | 1" Adapter x 1" Female NPT | Monel

2200110 (10A) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type A | 1" Adapter x 1" Female NPT | Monel

Save $44.66 Save $44.66
$120.33
$120.33 - $120.33
$120.33
$75.67
$75.67 - $75.67
$75.67

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type A | Adapter x Female NPT | Monel

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA
Specifications for Variant SKU: 2200110 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1in Male Cam & Groove, 1in Female NPT
Material(s): Monel
Features & Applications:
  • These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Female NPT
Thread		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
10A 2200110 1" 1" 1.91" 0.88" 1.76" 0.34" 250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
