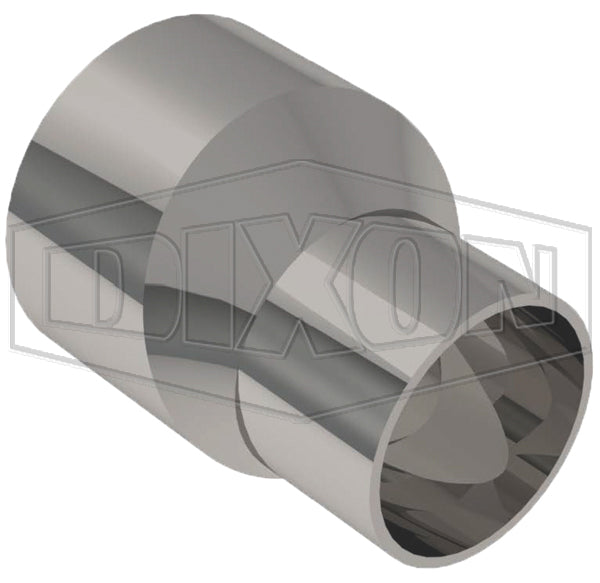

2211EBB100050F1 Dixon Valve 1" x 1/2" Tube OD 316L Stainless Steel BioPharm Weld x Weld Eccentric Reducer BPE2016 (PL Finish - SF1)

2211EBB100050F1 Dixon Valve 1" x 1/2" Tube OD 316L Stainless Steel BioPharm Weld x Weld Eccentric Reducer BPE2016 (PL Finish - SF1)

Save $65.70 Save $65.70
$164.25
$164.25 - $164.25
$164.25
$98.55
$98.55 - $98.55
$98.55

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Weld x Weld Eccentric Reducer

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: 2211EBB100050F1 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Weld End, 1/2in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2016 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A B WT1 C WT2
2211EBB075050F1 2211EBB075050F4 3/4" x 1/2" 2.125" 0.750" 0.065" 0.500" 0.065"
2211EBB100050F1 2211EBB100050F4 1" x 1/2" 2.500" 1.000" 0.065" 0.500" 0.065"
2211EBB100075F1 2211EBB100075F4 1" x 3/4" 2.125" 1.000" 0.065" 0.750" 0.065"
2211EBB150075F1 2211EBB150075F4 1-1/2" x 3/4" 3.000" 1.500" 0.065" 0.750" 0.065"
2211EBB150100F1 2211EBB150100F4 1-1/2" x 1" 2.500" 1.500" 0.065" 1.000" 0.065"
2211EBB200100F1 2211EBB200100F4 2" x 1" 2.375" 2.000" 0.065" 1.000" 0.065"
2211EBB200150F1 2211EBB200150F4 2" x 1-1/2" 2.500" 2.000" 0.065" 1.500" 0.065"
2211EBB250200F1 - 2-1/2" x 2" 2.500" 2.500" 0.065" 2.000" 0.065"
2211EBB300200F1 - 3" x 2" 3.375" 3.000" 0.065" 2.000" 0.065"
2211EBB400200F1 2211EBB400200F4 4" x 2" 5.125" 4.000" 0.083" 2.000" 0.065"
2211EBB400250F1 - 4" x 2-1/2" 4.250" 4.000" 0.083" 2.500" 0.065"
2211EBB400300F1 2211EBB400300F4 4" x 3" 3.875" 4.000" 0.083" 3.000" 0.065"
