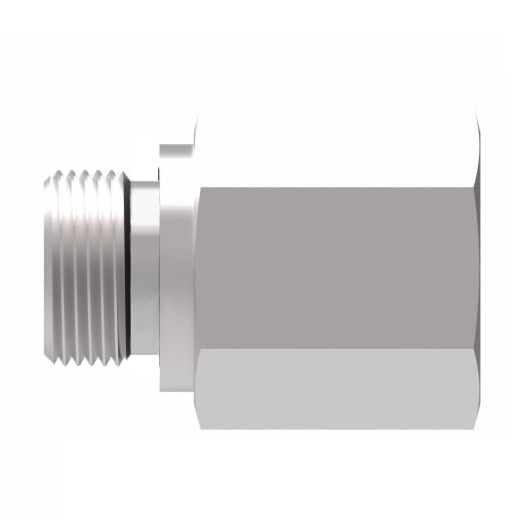

2216-1-4-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter (without O-Ring) | -04 Female NPTF x -10 Male SAE O-Ring Boss | Steel

2216-1-4-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter (without O-Ring) | -04 Female NPTF x -10 Male SAE O-Ring Boss | Steel

$13.93 - $13.93
$13.93
$13.93 - $13.93
$13.93

Aeroquip® by Danfoss
Internal Pipe/SAE O-Ring Boss Adapter
Female NPTF x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2216-1-4-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 5/8in Male O-Ring Boss
Material(s): Steel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring		 Thread P Thread T A
2216-2-4S 2216-1-2-4S 1/8-27 7/16-20 0.92"
2216-2-5S - 1/8-27 1/2-20 1.22"
2216-4-4S - 1/4-18 7/16-20 1.20"
2216-4-5S 2216-1-4-5S 1/4-18 1/2-20 1.20"
2216-4-6S - 1/4-18 9/16-18 1.24"
2216-4-8S - 1/4-18 3/4-16 1.06"
2216-4-10S 2216-1-4-10S 1/4-18 7/8-14 0.81"
2216-6-6S 2216-1-6-6S 3/8-18 9/16-18 1.30"
2216-6-8S - 3/8-18 3/4-16 1.25"
2216-6-10S 2216-1-6-10S 3/8-18 7/8-14 1.25"
2216-6-12S 2216-1-6-12S 3/8-18 1-1/16-12 1.34"
2216-8-6S 2216-1-8-6S 1/2-14 9/16-18 1.46"
2216-8-8S - 1/2-14 3/4-16 1.65"
2216-8-10S - 1/2-14 7/8-14 1.54"
2216-8-12S 2216-1-8-12S 1/2-14 1-1/16-12 1.72"
2216-8-16S - 1/2-14 1-5/16-12 1.00"
2216-12-10S - 3/4-14 7/8-14 1.77"
2216-12-12S - 3/4-14 1-1/16-12 1.67"
2216-12-14S - 3/4-14 1-3/16-12 1.68"
2216-12-16S - 3/4-14 1-5/16-12 1.00"
2216-16-16S - 1-11-1/2 1-5/16-12 1.91"
2216-16-20S 2216-1-16-20S 1-11-1/2 1-5/8-12 1.00"
2216-20-20S - 1-1/4-11-1/2 1-5/8-12 2.00"
2216-24-24S - 1-1/2-11-1/2 1-7/8-12 2.00"
2216-32-32S - 2-11-1/2 1-1/2-12 2.10"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
