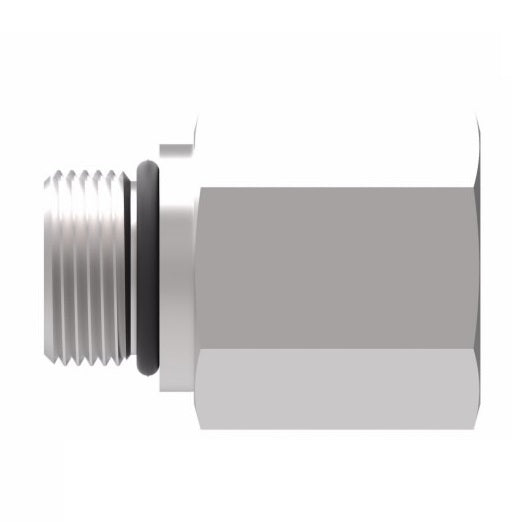

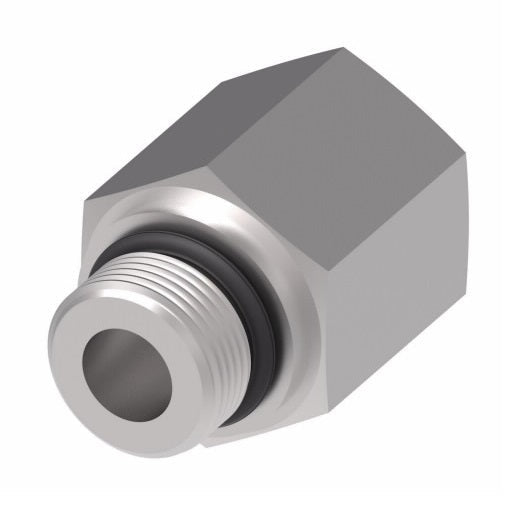

2216-2-5S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter | -02 Female NPTF x -05 Male SAE O-Ring Boss | Steel
2216-2-5S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter | -02 Female NPTF x -05 Male SAE O-Ring Boss | Steel
2216-2-5S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter | -02 Female NPTF x -05 Male SAE O-Ring Boss | Steel
2216-2-5S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter | -02 Female NPTF x -05 Male SAE O-Ring Boss | Steel

2216-2-5S Aeroquip by Danfoss | Internal Pipe/SAE ORB Adapter | -02 Female NPTF x -05 Male SAE O-Ring Boss | Steel

$6.92 - $6.92
$6.92
$6.92 - $6.92
$6.92

Aeroquip® by Danfoss
Internal Pipe/SAE O-Ring Boss Adapter
Female NPTF x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2216-2-5S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPTF, 5/16in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring		 Thread P Thread T A
2216-2-4S 2216-1-2-4S 1/8-27 7/16-20 0.92"
2216-2-5S - 1/8-27 1/2-20 1.22"
2216-4-4S - 1/4-18 7/16-20 1.20"
2216-4-5S 2216-1-4-5S 1/4-18 1/2-20 1.20"
2216-4-6S - 1/4-18 9/16-18 1.24"
2216-4-8S - 1/4-18 3/4-16 1.06"
2216-4-10S 2216-1-4-10S 1/4-18 7/8-14 0.81"
2216-6-6S 2216-1-6-6S 3/8-18 9/16-18 1.30"
2216-6-8S - 3/8-18 3/4-16 1.25"
2216-6-10S 2216-1-6-10S 3/8-18 7/8-14 1.25"
2216-6-12S 2216-1-6-12S 3/8-18 1-1/16-12 1.34"
2216-8-6S 2216-1-8-6S 1/2-14 9/16-18 1.46"
2216-8-8S - 1/2-14 3/4-16 1.65"
2216-8-10S - 1/2-14 7/8-14 1.54"
2216-8-12S 2216-1-8-12S 1/2-14 1-1/16-12 1.72"
2216-8-16S - 1/2-14 1-5/16-12 1.00"
2216-12-10S - 3/4-14 7/8-14 1.77"
2216-12-12S - 3/4-14 1-1/16-12 1.67"
2216-12-14S - 3/4-14 1-3/16-12 1.68"
2216-12-16S - 3/4-14 1-5/16-12 1.00"
2216-16-16S - 1-11-1/2 1-5/16-12 1.91"
2216-16-20S 2216-1-16-20S 1-11-1/2 1-5/8-12 1.00"
2216-20-20S - 1-1/4-11-1/2 1-5/8-12 2.00"
2216-24-24S - 1-1/2-11-1/2 1-7/8-12 2.00"
2216-32-32S - 2-11-1/2 1-1/2-12 2.10"
