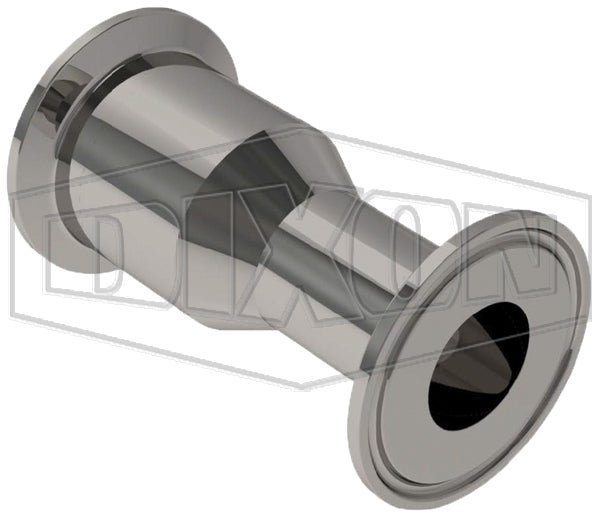

2221CBB200100F1 Dixon Valve 2" x 1" Tube OD 316L Stainless Steel BioPharm Clamp x Clamp Concentric Reducer BPE2016 (PL Finish - SF1)

2221CBB200100F1 Dixon Valve 2" x 1" Tube OD 316L Stainless Steel BioPharm Clamp x Clamp Concentric Reducer BPE2016 (PL Finish - SF1)

Save $15.75 Save $15.75
$101.68
$101.68 - $101.68
$101.68
$85.93
$85.93 - $85.93
$85.93

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Clamp x Clamp Concentric Reducer

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2221CBB200100F1 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 1in Sanitary Clamp End
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2016 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A B WT1 C WT2
2221CBB075050F1 2221CBB075050F4 3/4" x 1/2" 3.125" 0.750" 0.065" 0.500" 0.065"
2221CBB100050F1 2221CBB100050F4 1" x 1/2" 3.500" 1.000" 0.065" 0.500" 0.065"
2221CBB100075F1 2221CBB100075F4 1" x 3/4" 3.125" 1.000" 0.065" 0.750" 0.065"
2221CBB150075F1 2221CBB150075F4 1-1/2" x 3/4" 4.000" 1.500" 0.065" 0.750" 0.065"
2221CBB150100F1 2221CBB150100F4 1-1/2" x 1" 3.500" 1.500" 0.065" 1.000" 0.065"
2221CBB200100F1 2221CBB200100F4 2" x 1" 4.375" 2.000" 0.065" 1.000" 0.065"
2221CBB200150F1 2221CBB200150F4 2" x 1-1/2" 3.500" 2.000" 0.065" 1.500" 0.065"
2221CBB250200F1 2221CBB250200F4 2-1/2" x 2" 3.500" 2.500" 0.065" 2.000" 0.065"
2221CBB400300F4 - 4" x 3" 5.000" 4.000" 0.083" 3.000" 0.065"
