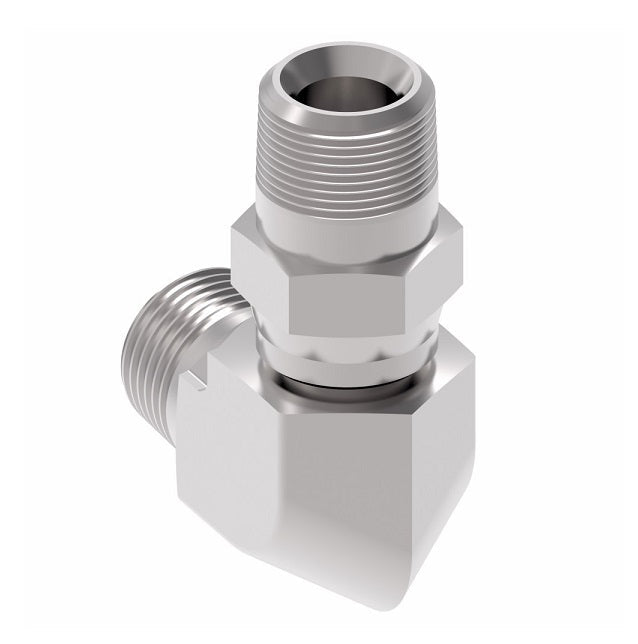

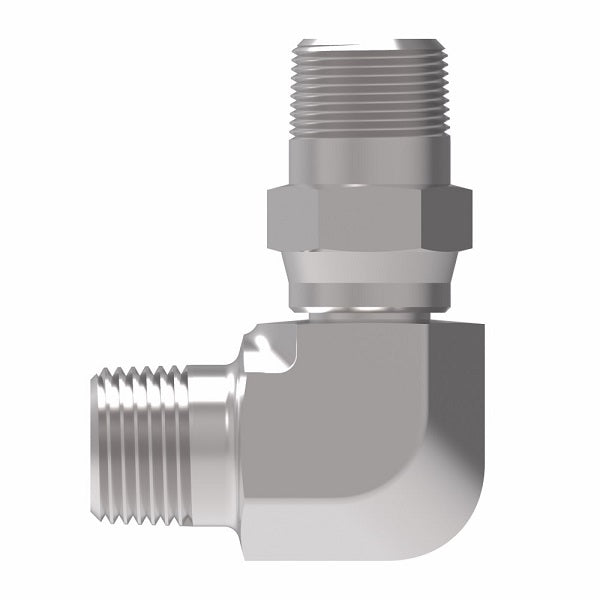

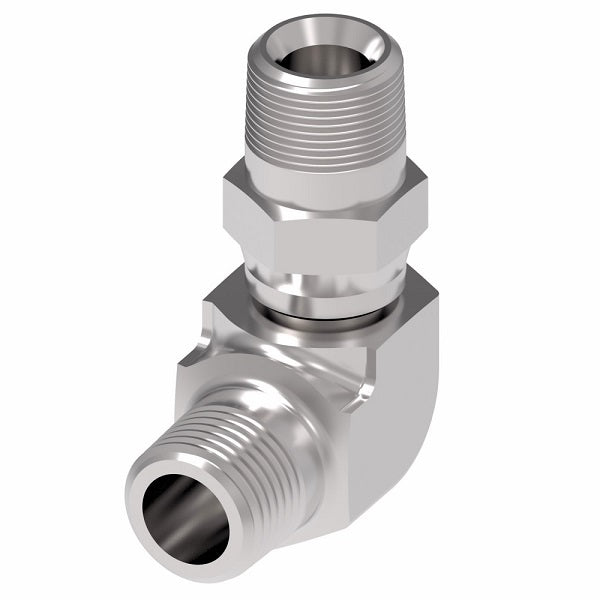

2251-4-4S Aeroquip by Danfoss | External Pipe Swivel/External Pipe 90° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel
2251-4-4S Aeroquip by Danfoss | External Pipe Swivel/External Pipe 90° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel
2251-4-4S Aeroquip by Danfoss | External Pipe Swivel/External Pipe 90° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel
2251-4-4S Aeroquip by Danfoss | External Pipe Swivel/External Pipe 90° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel

2251-4-4S Aeroquip by Danfoss | External Pipe Swivel/External Pipe 90° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel

$29.54 - $29.54
$29.54
$29.54 - $29.54
$29.54

Aeroquip® by Danfoss
External Pipe Swivel/External Pipe Adapter
Male NPTF x Male NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2251-4-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF
Special Properties: Swivel
Applications:
  • To be used with petroleum or water glycol fluids.
Note:
  • This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.
Steel
Part Number 		Thread P1 Thread P2 A B
2251-4-4S 1/4-18 1/4-18 1.72" 1.09"
2251-6-6S 3/8-18 3/8-18 1.78" 1.22"
2251-8-8S 1/2-14 1/2-14 2.14" 1.47"
2251-12-12S 3/4-14 3/4-14 2.61" 1.59"
