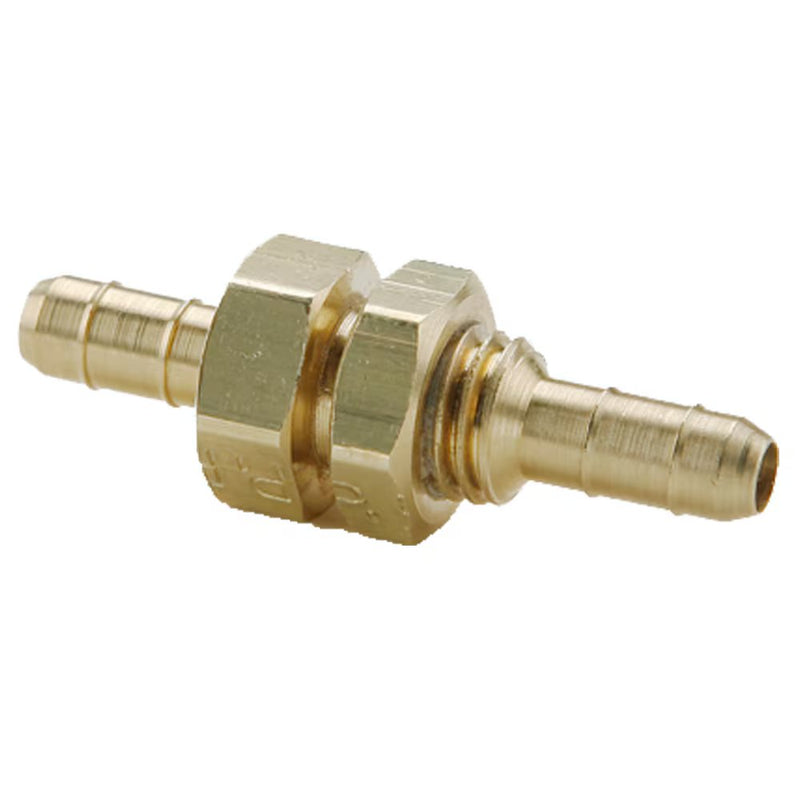

22BH-6-6 by Parker | Dubl-Barb® Fittings | 3/8" Tube OD x .250" Tube ID | 7/16" Hex | 1.63" Length | Straight | Brass | Pack of 25

22BH-6-6 by Parker | Dubl-Barb® Fittings | 3/8" Tube OD x .250" Tube ID | 7/16" Hex | 1.63" Length | Straight | Brass | Pack of 25

Save $153.71 Save $153.71
$384.27
$384.27 - $384.27
$384.27
$230.56
$230.56 - $230.56
$230.56

by Parker Hannifin
Dubl-Barb® Fittings:Bulkhead Union 22BH

Package Quantity: 25 Units

Specifications for Variant SKU: 22BH-6-6 Parker | 25 |
Brand: Dubl-Barb®
Series: 22BH Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Vibration Resistance
Product Features:
  • Compact
  • One piece
  • No clamp required
  • Good vibration resistance
Markets:
  • Pneumatic
  • Environmental control
Applications:
  • Pneumatic Systems
  • Climate Control
  • Humidifiers
  • Filters
Specification:
Temperature Range: See Chart Below
Pressure Range: See Chart Below
Compatible Tubing:
  • Polyethylene
Part Number Tube OD Tube ID Straight Thread Hex (C) Max (P) L M Flow Diameter (D) Bulkhead Hole Diameter
22BH-4-4 1/4" .170" 5/16"-24 7/16" .219" 1.38" .78" .120" 5/16"
22BH-6-6 3/8" .250" 3/8"-24 7/16" .375" 1.63" 1.00" .187" 3/8"
