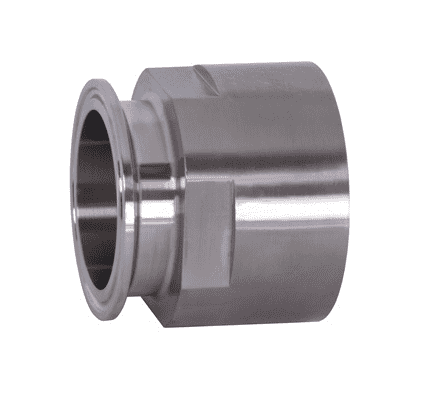

22MP-G100375 Dixon Valve 304 Stainless Steel Sanitary Clamp x Female NPT Adapter - 1" Tube OD - 3/8" NPT

22MP-G100375 Dixon Valve 304 Stainless Steel Sanitary Clamp x Female NPT Adapter - 1" Tube OD - 3/8" NPT

Save $24.06 Save $24.06
$60.15
$60.15 - $60.15
$60.15
$36.09
$36.09 - $36.09
$36.09

Dixon Sanitary Fittings Sanitary Clamp Adapter - Clamp x Female NPT Adapter - 304 Stainless Steel
Specifications for Variant SKU: 22MP-G100375 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Sanitary Clamp End, 3/8in Female NPT
Material(s): 304 Stainless Steel
Part Number Tube OD NPT Size Dimensions
 Weight (Lbs.)
A
22MP-G100-125 1" 1/8" 1.63" 1.0000
22MP-G10025 1" 1/4" 1.63" 1.0000
22MP-G100375 1" 3/8" 1.63" 1.1500
22MP-G10050 1" 1/2" 1.63" 1.0800
22MP-G10075 1" 3/4" 1.63" 1.0200
22MP-G100 1" 1" 1.63" 0.8200
22MP-G100125 1" 1-1/4" 1.63" 1.0000
22MP-G100150 1" 1-1/2" 1.63" 2.5900
22MP-G100200 1" 2" 1.63" 1.2850
22MP-G15025 1-1/2" 1/4" 1.63" 1.0000
22MP-G150375 1-1/2" 3/8" 1.63" 1.0000
22MP-G15050 1-1/2" 1/2" 1.63" 1.0000
22MP-G15075 1-1/2" 3/4" 1.63" 0.8400
22MP-G150100 1-1/2" 1" 1.63" 0.7200
22MP-G150125 1-1/2" 1-1/4" 2.25" 0.7400
22MP-G150 1-1/2" 1-1/2" 2.25" 1.0000
22MP-G150200 1-1/2" 2" 2.25" 1.6000
22MP-G150250 1-1/2" 2-1/2" - 1.8650
22MP-G20050 2" 1/2" 1.69" 1.7350
22MP-G20075 2" 3/4" 1.69" 2.0000
22MP-G200100 2" 1" 1.69" 1.4900
22MP-G200125 2" 1-1/4" 1.69" 2.0000
22MP-G200150 2" 1-1/2" 1.66" 0.5900
22MP-G200 2" 2" 2.34" 1.3800
22MP-G200250 2" 2-1/2" 2.41" 1.5200
22MP-G200300 2" 3" 2.41" 3.0600
22MP-G25075 2-1/2" 3/4" 1.31" 2.0000
22MP-G250100 2-1/2" 1" 1.31" 2.0000
22MP-G250150 2-1/2" 1-1/2" 1.66" 1.9700
22MP-G250200 2-1/2" 2" 1.72" 1.8800
22MP-G250 2-1/2" 2-1/2" 2.09" 3.9450
22MP-G250300 2-1/2" 3" 2.19" 2.0000
22MP-G300100 3" 1" 2.19" 2.0000
22MP-G300150 3" 1-1/2" 2.19" 4.0250
22MP-G300200 3" 2" 2.19" 3.1600
22MP-G300250 3" 2-1/2" - 2.3300
22MP-G300 3" 3" 2.19" 1.7500
22MP-G400200 4" 2" 2.19" 3.0000
22MP-G400250 4" 2-1/2" 2.19" 3.0000
22MP-G400 4" 4" 2.63" 2.7195
22MP-G400600 4" 6" - 6.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
