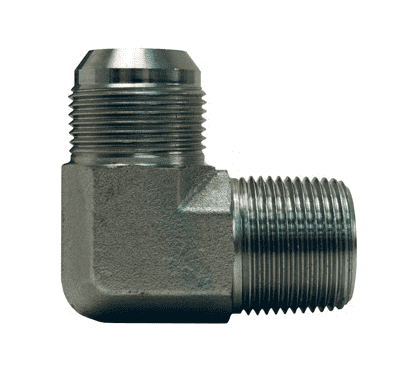

2501-6-6 Dixon Zinc Plated Steel 90 deg. 9/16"-18 Male 37 deg. JIC Flare x 3/8"-18 Male NPTF

2501-6-6 Dixon Valve Zinc Plated Steel 90 deg. 9/16"-18 Male 37 deg. JIC Flare x 3/8"-18 Male NPTF

Save $1.97 Save $1.97
$4.93
$4.93 - $4.93
$4.93
$2.96
$2.96 - $2.96
$2.96

SAE / JIC Fittings - 90 deg. Male 37 deg. JIC Flare x Male NPTF - Zinc Plated Steel
Specifications for Variant SKU: 2501-6-6 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male JIC, 3/8in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male 37 deg. JIC Flare Male NPTF Working Pressure Weight (Lbs.)
2501-4-2 7/16"-20 1/8"-27 4500 PSI 0.0500
2501-4-4 7/16"-20 1/4"-18 4500 PSI 0.1000
2501-4-6 7/16"-20 3/8"-18 4000 PSI 0.1800
2501-6-2 9/16"-18 1/8"-27 4000 PSI 0.1000
2501-6-4 9/16"-18 1/4"-18 4000 PSI 0.1000
2501-6-6 9/16"-18 3/8"-18 4000 PSI 0.2000
2501-6-8 9/16"-18 1/2"-14 3000 PSI 0.2600
2501-8-4 3/4"-16 1/4"-18 4000 PSI 0.1800
2501-8-6 3/4"-16 3/8"-18 4000 PSI 0.0850
2501-8-8 3/4"-16 1/2"-14 3000 PSI 0.2800
2501-8-12 3/4"-16 3/4"-14 2500 PSI 0.4100
2501-10-8 7/8"-14 1/2"-14 3000 PSI 0.1650
2501-10-12 7/8"-14 3/4"-14 2500 PSI 0.4660
2501-12-8 1-1/16"-12 1/2"-14 3000 PSI 0.4600
2501-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.4700
2501-12-16 1-1/16"-12 1"-11-1/2 2000 PSI 0.7200
2501-16-12 1-5/16"-12 3/4"-14 2500 PSI 0.8190
2501-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.7000
2501-20-16 1-5/8"-12 1"-11-1/2 2000 PSI 1.3800
2501-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI 1.4200
2501-24-24 1-7/8"-12 1-1/2"-11-1/2 1000 PSI 1.7200
2501-32-32 2-1/2"-12 2"-11-1/2 1000 PSI 3.1000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
