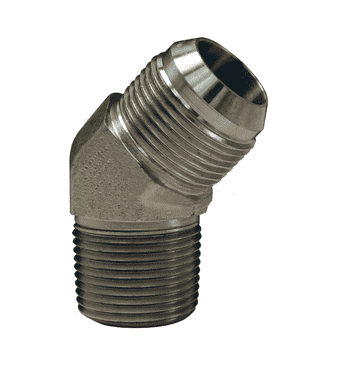

2503-16-16 Dixon Zinc Plated Steel 45 deg. 1-5/16"-12 Male 37 deg. JIC Flare x 1"-11-1/2 Male NPTF

2503-16-16 Dixon Valve Zinc Plated Steel 45 deg. 1-5/16"-12 Male 37 deg. JIC Flare x 1"-11-1/2 Male NPTF

Save $0.80 Save $0.80
$7.96
$7.96 - $7.96
$7.96
$7.16
$7.16 - $7.16
$7.16

SAE / JIC Fittings - 45 deg. Male 37 deg. JIC Flare x Male NPTF - Zinc Plated Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2503-16-16 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1in Male JIC, 1in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male 37 deg. JIC Flare Male NPTF Working Pressure Weight (Lbs.)
2503-4-2 7/16"-20 1/8"-27 4500 PSI 0.0400
2503-4-4 7/16"-20 1/4"-18 4500 PSI 0.0780
2503-6-4 9/16"-18 1/4"-18 4000 PSI 0.9760
2503-6-6 9/16"-18 3/8"-18 4000 PSI 0.1186
2503-8-4 3/4"-16 1/4"-18 4000 PSI 0.1540
2503-8-6 3/4"-16 3/8"-18 4000 PSI 0.1640
2503-8-8 3/4"-16 1/2"-14 3000 PSI 0.2600
2503-10-8 7/8"-14 1/2"-14 3000 PSI 0.2600
2503-10-12 7/8"-14 3/4"-14 2500 PSI 0.3450
2503-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.3400
2503-16-12 1-5/16"-12 3/4"-14 2500 PSI 0.5000
2503-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.5400
