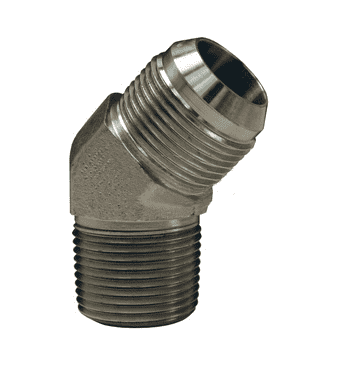

2503-4-2 Dixon Zinc Plated Steel 45 deg. 7/16"-20 Male 37 deg. JIC Flare x 1/8"-27 Male NPTF

2503-4-2 Dixon Valve Zinc Plated Steel 45 deg. 7/16"-20 Male 37 deg. JIC Flare x 1/8"-27 Male NPTF

Save $0.30 Save $0.30
$2.73
$2.73 - $2.73
$2.73
$2.43
$2.43 - $2.43
$2.43

SAE / JIC Fittings - 45 deg. Male 37 deg. JIC Flare x Male NPTF - Zinc Plated Steel
Specifications for Variant SKU: 2503-4-2 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male JIC, 1/8in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male 37 deg. JIC Flare Male NPTF Working Pressure Weight (Lbs.)
2503-4-2 7/16"-20 1/8"-27 4500 PSI 0.0400
2503-4-4 7/16"-20 1/4"-18 4500 PSI 0.0780
2503-6-4 9/16"-18 1/4"-18 4000 PSI 0.9760
2503-6-6 9/16"-18 3/8"-18 4000 PSI 0.1186
2503-8-4 3/4"-16 1/4"-18 4000 PSI 0.1540
2503-8-6 3/4"-16 3/8"-18 4000 PSI 0.1640
2503-8-8 3/4"-16 1/2"-14 3000 PSI 0.2600
2503-10-8 7/8"-14 1/2"-14 3000 PSI 0.2600
2503-10-12 7/8"-14 3/4"-14 2500 PSI 0.3450
2503-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.3400
2503-16-12 1-5/16"-12 3/4"-14 2500 PSI 0.5000
2503-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.5400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
