2513133-50 ZELITE™ by NewAge | Polyethylene LLDPE Tubing | 1.500" ID x 1.750" OD x 1/8" Wall | Natural | 50 ft

2513133-50 ZELITE™ by NewAge | Polyethylene LLDPE Tubing | 1.500" ID x 1.750" OD x 1/8" Wall | Natural | 50 ft

Save $125.78 Save $125.78
$314.45
$314.45 - $314.45
$314.45
$188.67
$188.67 - $188.67
$188.67

PRODUCT DESCRIPTION

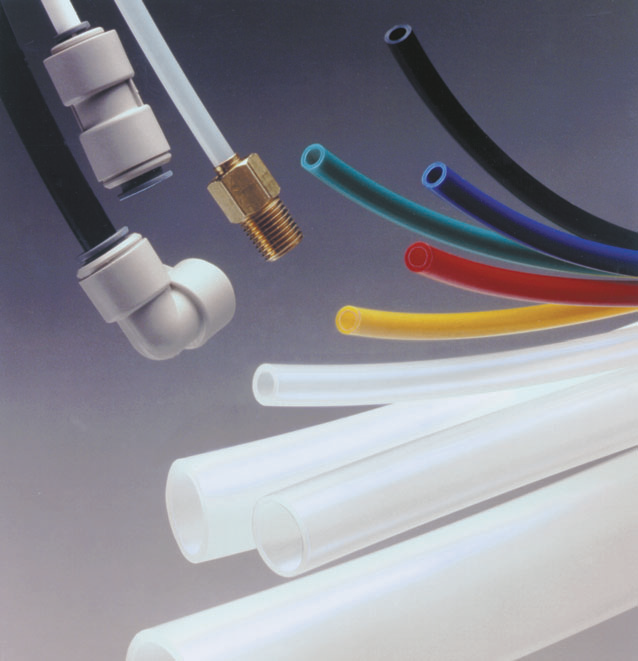

NewAge Industries - ZELITE™ Polyethylene Tubing - Linear Low Density Polyethylene Tubing (LLDPE)

Package Quantity: 50 FT

Specifications for Variant SKU: 2513133-50 NewAge | 50 |
Brand: Zelite
Hose Color(s): Natural
Internal Diameter: 1.5in
Outer Diameter: 1.75in
Tubing Construction: Linear Low-Density Polyethylene
Applicable Specs & Approvals: Applicable FDA Requirements
Application: Air Lines, Beverage, Chemicals, Conduit, Food, Hospitals,
Instrumentation, Laboratory, Pools & Spas, Potable Water, Spacers,
Water & Fluid Lines, Wire Jacketing		 Tube: Linear Low Density Polyethylene
Reinforcement: Unreinforced Cover: N/A
Temperature Range: 140°F Colors: Multi
Opacity: Opaque Specifications FDA
Other Features:
  • Made from non-toxic ingredients conforming to FDA standards
  • Does not impart a taste or odor to critical streams
  • Flexible, lightweight, durable
  • Translucent natural or opaque colors
  • Made from 100% virgin grade raw materials
  • Good dielectric properties
  • Offers enhanced resistance to stress cracking
  • Chemically inert; forms a good barrier to gases, vapors, and moisture
  • Made in the USA
Notes:
  • ZELITE conforms to the applicable regulations of the FDA for use in articles intended for contact with food.The increased tensile strength of ZELITE Linear Low Density, over that of a low density polyethylene, enhances its resistance to splitting during use.
  • FEP-lined polyethylene, offering superior purity at a very reasonable cost, is available through minimum order.Medium-high and ultra-high density polyethylene material is available through minimum order. contact support on these custom products.
Physical Properties**
Linear Low Density
Hardness, Shore A ±5 50
Tensile Strength, psi 2250
Elongation at Break, % 600
Brittle Temperature -76°F
Vicat Softening Point -196°F
Max. Operating Temperature 140°F

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number Inside Diameter
(in.)		 Outside Diameter
(in.)		 Wall Thickness
(in.)		 Length Working PSI (at 70°F) Burst PSI (at 70°F) Colors Weight
(lbs/100ft)
2510214-500 0.125" (1/8") 0.250" (1/4") 0.063" (1/16") 500 ft 180 PSI 720 PSI Black 1.47 Lbs
2510256-100 0.125" (1/8") 0.250" (1/4") 0.063" (1/16") 100 ft 180 PSI 720 PSI Natural 1.47 Lbs
2510256-500 0.125" (1/8") 0.250" (1/4") 0.063" (1/16") 500 ft 180 PSI 720 PSI Natural 1.47 Lbs
2510529-500 0.170" 0.250" (1/4") 0.040" 500 ft 135 PSI 540 PSI Black 1.05 Lbs
2510543-500 0.170" 0.250" (1/4") 0.040" 500 ft 135 PSI 540 PSI Blue 1.05 Lbs
2510571-100 0.170" 0.250" (1/4") 0.040" 100 ft 135 PSI 540 PSI Natural 1.05 Lbs
2510571-500 0.170" 0.250" (1/4") 0.040" 500 ft 135 PSI 540 PSI Natural 1.05 Lbs
2510606-500 0.170" 0.250" (1/4") 0.040" 500 ft 135 PSI 540 PSI Red 1.05 Lbs
2510886-500 0.188" (3/16") 0.313" (5/16") 0.063" (1/16") 500 ft 140 PSI 560 PSI Natural 2 Lbs
2511159-500 0.250" (1/4") 0.375" (3/8") 0.063" (1/16") 500 ft 120 PSI 480 PSI Black 2.5 Lbs
2511201-100 0.250" (1/4") 0.375" (3/8") 0.063" (1/16") 100 ft 120 PSI 480 PSI Natural 2.5 Lbs
2511201-500 0.250" (1/4") 0.375" (3/8") 0.063" (1/16") 500 ft 120 PSI 480 PSI Natural 2.5 Lbs
2512104-500 0.375" (3/8") 0.500" (1/2") 0.063" (1/16") 500 ft 90 PSI 360 PSI Black 3.5 Lbs
2512146-100 0.375" (3/8") 0.500" (1/2") 0.063" (1/16") 100 ft 90 PSI 360 PSI Natural 3.5 Lbs
2512146-500 0.375" (3/8") 0.500" (1/2") 0.063" (1/16") 500 ft 90 PSI 360 PSI Natural 3.5 Lbs
2512279-100 0.500" (1/2") 0.625" (5/8") 0.063" (1/16") 100 ft 70 PSI 280 PSI Black 4.4 Lbs
2512293-100 0.500" (1/2") 0.625" (5/8") 0.063" (1/16") 100 ft 70 PSI 280 PSI Natural 4.4 Lbs
2512398-100 0.625" (5/8") 0.750" (3/4") 0.063" (1/16") 100 ft 60 PSI 240 PSI Natural 5.4 Lbs
2512713-100 0.750" (3/4") 1.000" 0.125" (1/8") 100 ft 90 PSI 360 PSI Natural 13.7 Lbs
2512818-100 0.875" (7/8") 1.000" 0.063" (1/16") 100 ft 45 PSI 180 PSI Natural 7.4 Lbs
2512923-100 1.000" 1.250" 0.125" (1/8") 100 ft 72 PSI 288 PSI Natural 17.6 Lbs
2513133-50 1.500" 1.750" 0.125" (1/8") 50 ft 50 PSI 200 PSI Natural 25.5 Lbs
