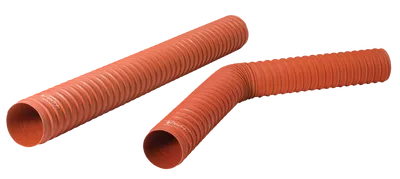

2563-200 FlexFab Series 2563 2-ply Industrial SIL-FAB2™ Nylon Rod Reinforced Duct - 2.00" ID - 2.40" OD - 12ft

2563-200 by FlexFab | Series 2563 | 2-ply Industrial SIL-FAB2™ Nylon Rod Reinforced Duct | 2.00" ID | 2.40" OD | 12ft Length

Save $158.00 Save $158.00
$553.01
$553.01 - $553.01
$553.01
$395.01
$395.01 - $395.01
$395.01

Flexfab Industrial Hose - Series 2563 - Industrial SIL-FAB2™ Nylon Rod Reinforced Duct

Package Quantity: 12 FT

Specifications for Variant SKU: 2563-200 Flexfab
Brand: SIL-FAB2
Series: Series 2563
Hose Color(s): Orange
Internal Diameter: 2.00in
Outer Diameter: 2.40in
Tubing Construction: Silicone
Cover Construction: Silicone
Overview:
  • Comes in 12' Lengths
  • 2-Ply Silicone-coated fiberglass fabric with Nylon Rod Reinforcement (No cuffs)
Construction:
  • Double-Ply, Silicone-Coated Woven Fiberglass Hose
  • Manufactured with nylon rod reinforcement
  • Helically wound Nylon Fiber for flexibility
Specifications:
  • Vulcanized for long service life
  • Lightweight, non-kinking
  • Bend radius equals the inside diameter for hoses up to 2.50" ID
  • Bend radius equals 2 times the inside diameter for hoses 3.00" ID and over
  • Temperature range is -65°F (-54°C) to +300°F (+149°C)
  • Working pressure is 1/3 of the burst pressure
Applications:
  • Designed for medium pressure handling of air, dust, fumes, and light powders
  • For applications in which metal wire may interfere
  • Not recommended for handling liquids or abrasive materials
  • Not recommended for charge air applications
Part Number Inside Diameter Outside Diameter Burst PressurePSI Max. Neg.PSI Max. LeakageCFM Bend RadiusInch Weight
2563-125 1.25" 1.65" 27 PSI -1 PSI 0.02 1.25" 1.08 lbs
2563-200 2.00" 2.40" 15 PSI -1 PSI 0.02 2.00" 1.73 lbs
2563-250 2.50" 2.90" 15 PSI -1 PSI 0.02 2.50" 2.16 lbs
2563-300 3.00" 3.40" 12 PSI -1 PSI 0.02 6.00" 2.59 lbs
2563-350 3.50" 3.90" 12 PSI -1 PSI 0.02 7.00" 3.02 lbs
2563-400 4.00" 4.40" 9 PSI -1 PSI 0.02 8.00" 3.46 lbs
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
