259-2027-16-16 Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Stainless Steel
259-2027-16-16 Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Stainless Steel
259-2027-16-16 Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Stainless Steel
259-2027-16-16 Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Stainless Steel

259-2027-16-16 Aeroquip by Danfoss | Male 37° JIC Flare Union Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Stainless Steel

$82.13 - $82.13
$82.13
$82.13 - $82.13
$82.13

Aeroquip® by Danfoss

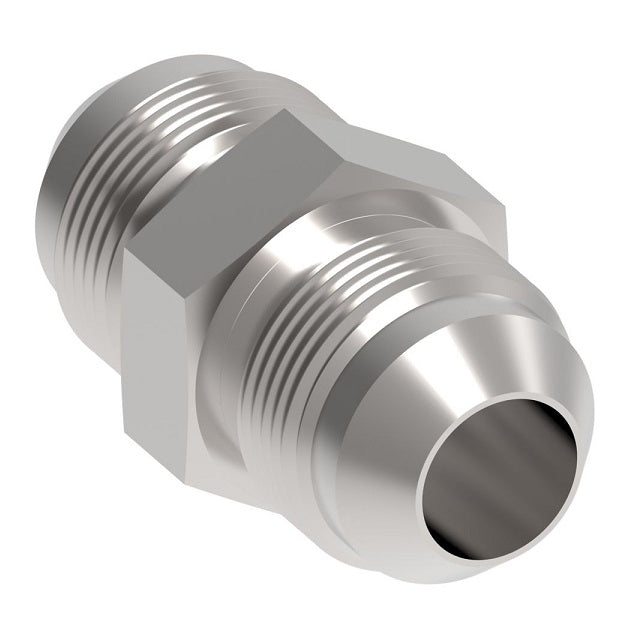

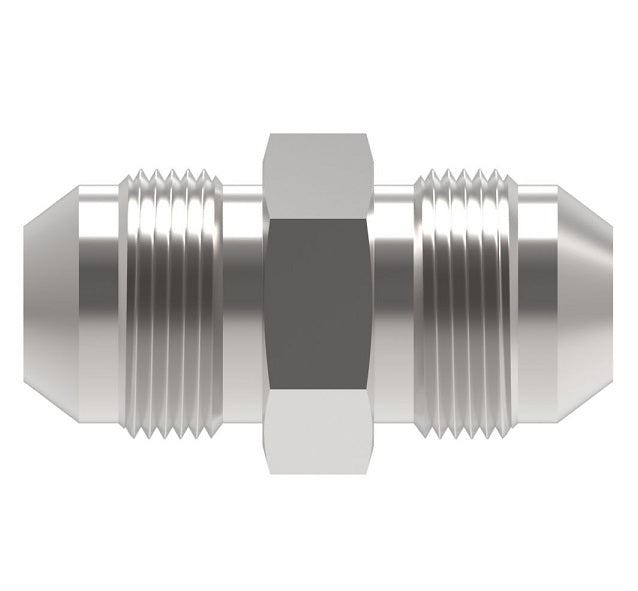

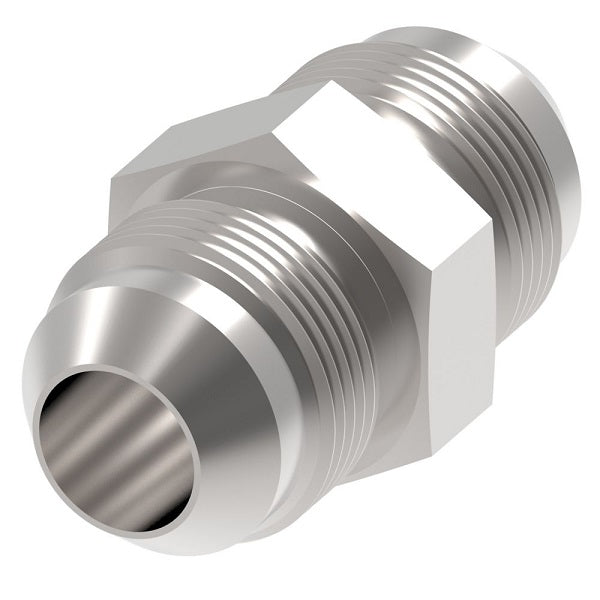

Male 37° JIC Flare Union Adapter
Male 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 259-2027-16-16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1in Male JIC
Material(s): Stainless Steel
Part Number
Steel		 Part Number
Brass		 Part Number
Stainless Steel 		Tube O.D. Thread T1 Thread T2 A B
2027-2-2S - - 0.13" 5/16-24 5/16-24 1.17" 0.44"
2027-3-3S - - 0.19" 3/8-24 3/8-24 1.23" 0.44"
2027-4-3S - - 0.19" 7/16-20 3/8-24 1.30" 0.50"
2027-4-4S 2027-4-4B 259-2027-4-4 0.25" 7/16-20 7/16-20 1.37" 0.50"
2027-5-4S - - 0.25" 1/2-20 7/16-20 1.37" 0.56"
2027-5-5S - - 0.31" 1/2-20 1/2-20 1.37" 0.56"
2027-6-4S - - 0.25" 9/16-18 7/16-20 1.40" 0.62"
2027-6-5S - - 0.31" 9/16-18 1/2-20 1.40" 0.62"
2027-6-6S - 259-2027-6-6 0.38" 9/16-18 9/16-18 1.41" 0.62"
2027-8-4S - - 0.25" 3/4-16 7/16-20 1.51" 1.81"
2027-8-6S - - 0.38" 3/4-16 9/16-18 1.52" 0.81"
2027-8-8S - 259-2027-8-8 0.50" 3/4-16 3/4-16 1.62" 0.81"
2027-10-6S - - 0.38" 7/8-14 9/16-18 1.68" 0.94"
2027-10-8S - - 0.50" 7/8-14 3/4-16 1.78" 0.94"
2027-10-10S - - 0.63" 7/8-14 7/8-14 1.88" 0.94"
2027-12-8S - - 0.38" 1-1/16-12 3/4-16 1.95" 1.12"
2027-12-10S - - 0.61" 1-1/16-12 7/8-14 2.05" 1.12"
2027-12-12S - 259-2027-12-12 0.75" 1-1/16-12 1-1/16-12 2.16" 1.12"
2027-14-14S - - 0.83" 1-3/16-12 1-3/16-12 2.21" 1.25"
2027-16-12S - - 0.75" 1-5/16-12 1-1/16-12 2.20" 1.38"
2027-16-16S 2027-16-16B 259-2027-16-16 1.00" 1-5/16-12 1-5/16-12 2.25" 1.38"
2027-20-16S - - 1.00" 1-5/8-12 1-5/16-12 2.38" 1.68"
2027-20-20S 2027-20-20B - 1.25" 1-5/8-12 1-5/8-12 2.43" 1.69"
2027-24-24S - - 1.50" 1-7/8-12 1-7/8-12 2.75" 2.00"
2027-32-32S - - 2.00" 2-1/2-12 2-1/2-12 3.40" 2.62"
