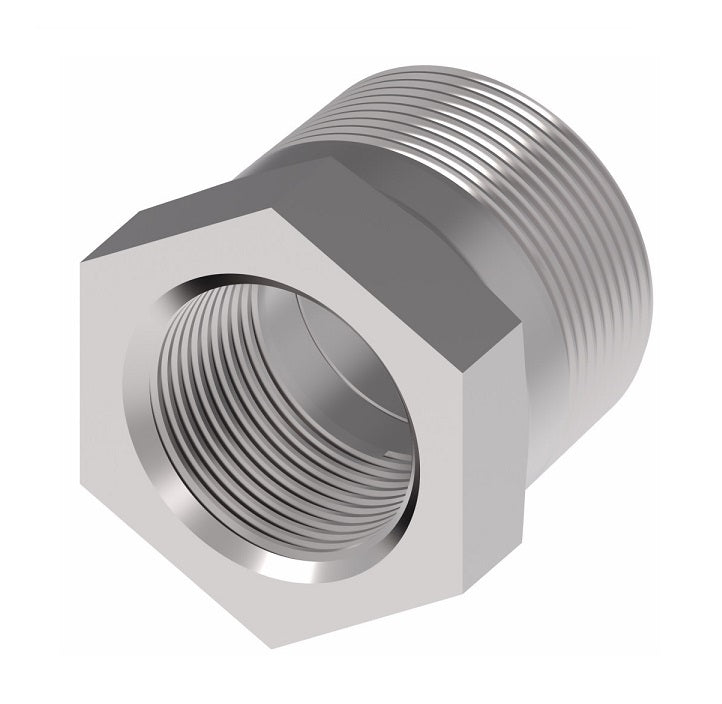

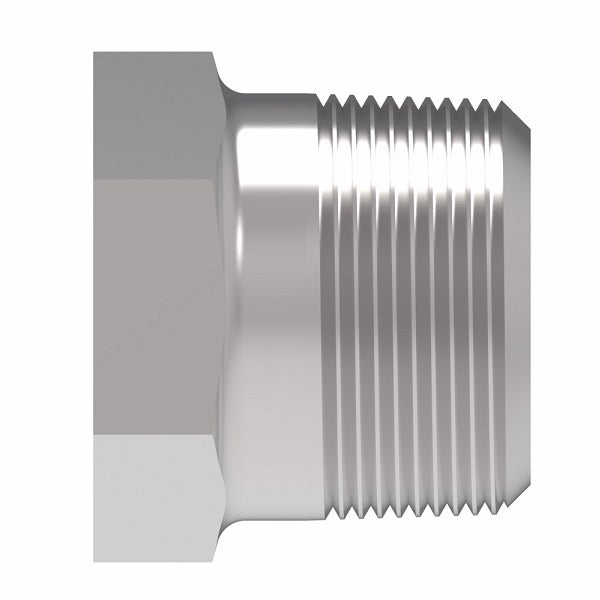

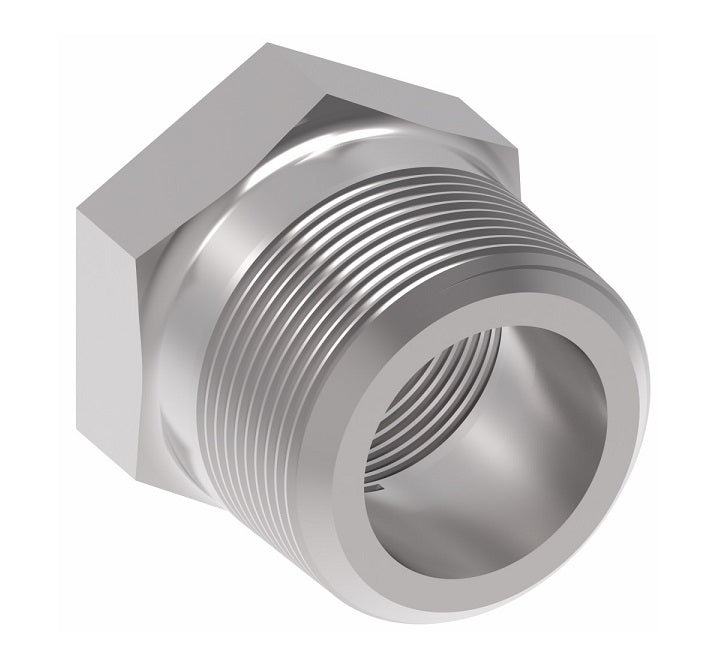

259-2081-4-2 Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -04 Male NPTF x -02 Female NPTF | Stainless Steel
259-2081-4-2 Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -04 Male NPTF x -02 Female NPTF | Stainless Steel
259-2081-4-2 Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -04 Male NPTF x -02 Female NPTF | Stainless Steel
259-2081-4-2 Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -04 Male NPTF x -02 Female NPTF | Stainless Steel

259-2081-4-2 Aeroquip by Danfoss | Reducer External Pipe/Internal Pipe Adapter | -04 Male NPTF x -02 Female NPTF | Stainless Steel

$17.70 - $17.70
$17.70
$17.70 - $17.70
$17.70

Aeroquip® by Danfoss
Reducer External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 259-2081-4-2 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/8in Female NPTF
Material(s): Stainless Steel
Specifications:
  • Ref. SAE 140140
Steel
Part Number 		Stainless Steel
Part Number 		Thread P1 Thread P2 A
2081-4-2S 259-2081-4-2 1/4-18 1/8-27 0.85"
2081-6-2S 259-2081-6-2 3/8-18 1/8-27 0.85"
2081-6-4S 259-2081-6-4 3/8-18 1/4-18 1.00"
2081-8-2S - 1/2-14 1/8-27 1.10"
2081-8-4S 259-2081-8-4 1/2-14 1/4-18 1.10"
2081-8-6S 259-2081-8-6 1/2-14 3/8-18 1.12"
2081-12-4S 259-2081-12-4 3/4-14 1/4-14 1.17"
2081-12-6S - 3/4-14 3/8-18 1.17"
2081-12-8S - 3/4-14 1/2-14 1.36"
2081-16-4S - 1-11-1/2 1/4-18 1.36"
2081-16-6S - 1-11-1/2 3/8-14 1.36"
2081-16-8S 259-2081-16-8 1-11-1/2 1/2-14 1.36"
2081-16-12S 259-2081-16-12 1-11-1/2 3/4-14 1.49"
2081-20-8S - 1-1/4-11-1/2 1/2-14 1.47"
2081-20-12S 259-2081-20-12 1-1/4-11-1/2 3/4-14 1.47"
2081-20-16S 259-2081-20-16 1-1/4-11-1/2 1-11-1/2 1.61"
2081-24-12S - 1-1/2-11-1/2 3/4-14 1.57"
2081-24-16S - 1-1/2-11-1/2 1-11-1/2 1.57"
2081-24-20S - 1-1/2-11-1/2 1-1/4-11-1/2 1.57"
2081-32-16S - 2-11-1/2 1-11-1/2 1.75"
2081-32-20S - 2-11-1/2 1-1/4-11-1/2 1.75"
2081-32-24S - 2-11-1/2 1-1/2-11-1/2 1.75"
