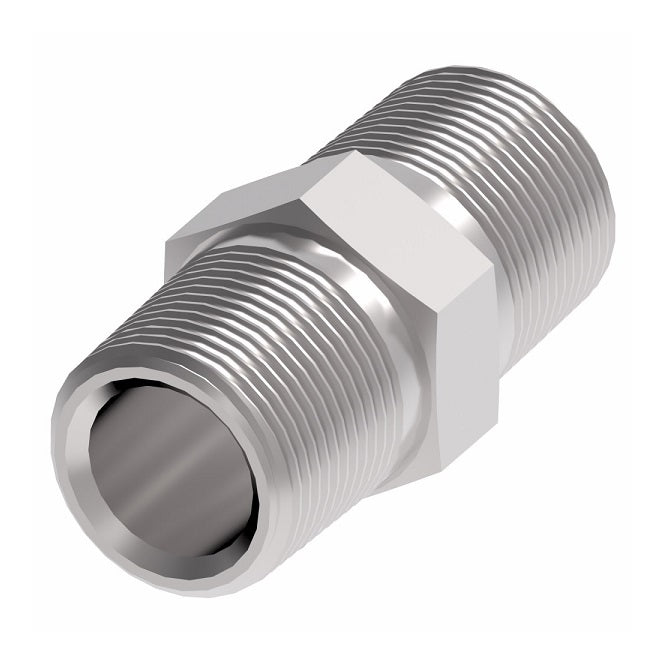

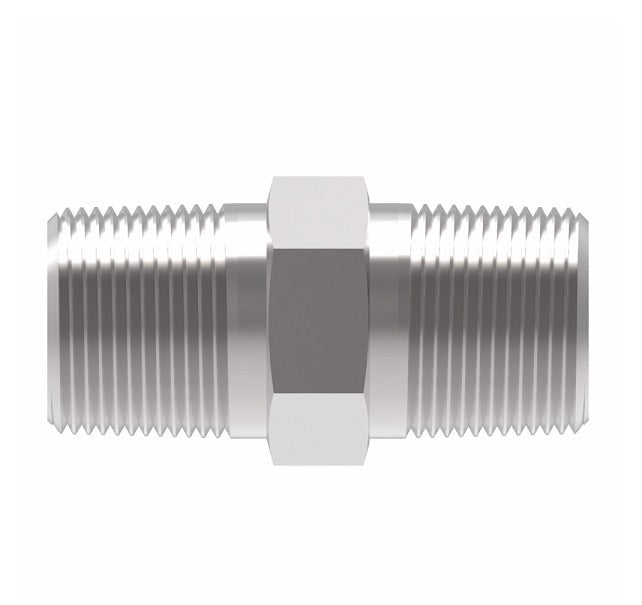

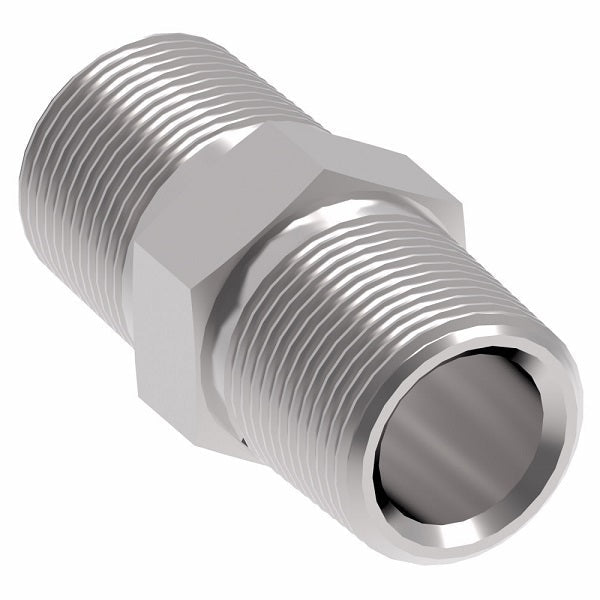

259-2083-4-4 Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -04 Male NPTF x -04 Male NPTF | Stainless Steel
259-2083-4-4 Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -04 Male NPTF x -04 Male NPTF | Stainless Steel
259-2083-4-4 Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -04 Male NPTF x -04 Male NPTF | Stainless Steel
259-2083-4-4 Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -04 Male NPTF x -04 Male NPTF | Stainless Steel

259-2083-4-4 Aeroquip by Danfoss | Nipple External Pipe/External Pipe Adapter | -04 Male NPTF x -04 Male NPTF | Stainless Steel

$22.70 - $22.70
$22.70
$22.70 - $22.70
$22.70

Aeroquip® by Danfoss
Nipple External Pipe/External Pipe Adapter
Male NPTF x Male NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 259-2083-4-4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF
Material(s): Stainless Steel
Specifications:
  • Ref. SAE 140137
Steel
Part Number 		Stainless Steel
Part Number 		Thread P1 Thread P2 A
2083-1-1S - 1/16-27 1/16-27 0.94"
2083-2-1S - 1/8-27 1/16-27 0.97"
2083-2-2S 259-2083-2-2 1/8-27 1/8-27 1.06"
2083-4-2S 259-2083-4-2 1/4-18 1/8-27 1.26"
2083-4-4S 259-2083-4-4 1/4-18 1/4-18 1.45"
2083-6-2S - 3/8-18 1/8-27 1.25"
2083-6-4S 259-2083-6-4 3/8-18 1/4-18 1.45"
2083-6-6S 259-2083-6-6 3/8-18 3/8-18 1.45"
2083-8-4S - 1/2-14 1/4-18 1.70"
2083-8-6S - 1/2-14 3/8-18 1.70"
2083-8-8S 259-2083-8-8 1/2-14 1/2-14 1.89"
2083-12-6S - 3/4-14 3/8-18 1.77"
2083-12-8S - 3/4-14 1/2-14 1.96"
2083-12-12S 259-2083-12-12 3/4-14 3/4-14 1.96"
2083-16-12S - 1-11-1/2 3/4-14 2.15"
2083-16-16S - 1-11-1/2 1-11-1/2 2.34"
2083-20-16S - 1-1/4-11-1/2 1-11-1/2 2.45"
2083-20-20S 259-2083-20-20 1-1/4-11-1/2 1-1/4-11-1/2 2.48"
2083-24-24S 259-2083-24-24 1-1/2-11-1/2 1-1/2-11-1/2 2.61"
2083-32-32S - 2-11-1/2 2-11-1/2 2.82"
