259-4721-8-8 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | 316 Stainless Steel
259-4721-8-8 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | 316 Stainless Steel
259-4721-8-8 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | 316 Stainless Steel
259-4721-8-8 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | 316 Stainless Steel

259-4721-8-8 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | 316 Stainless Steel

$315.56 - $315.56
$315.56
$315.56 - $315.56
$315.56

Aeroquip® by Danfoss

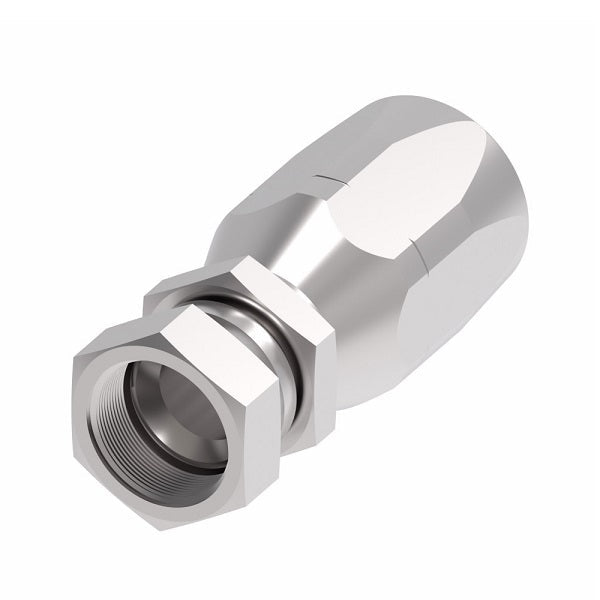

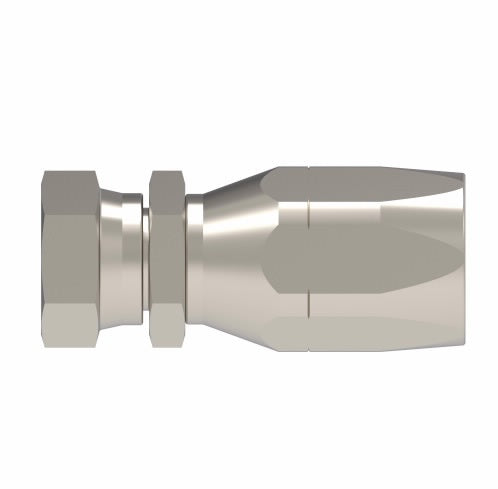

100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight
(316 Stainless Steel)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 259-4721-8-8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Reusable Hose End
Material(s): 316 Stainless Steel
Special Properties: Swivel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
316 Stainless Steel
Part Number 		Hose Size Thread A D EØ
259-4721-4-4 -04 7/16-20 2.64" 1.41" 0.17"
259-4721-6-6 -06 9/16-18 2.98" 1.51" 0.26"
259-4721-8-6 -06 3/4-16 3.11" 1.64" 0.31"
259-4721-8-8 -08 3/4-16 3.20" 1.68" 0.39"
259-4721-10-8 -08 7/8-14 3.31" 1.80" 0.39"
259-4721-10 -10 7/8-14 3.40" 1.85" 0.50"
259-4721-12 -12 1-1/16-12 3.86" 1.99" 0.61"
259-4721-16 -16 1-5/16-12 4.48" 2.42" 0.82"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
