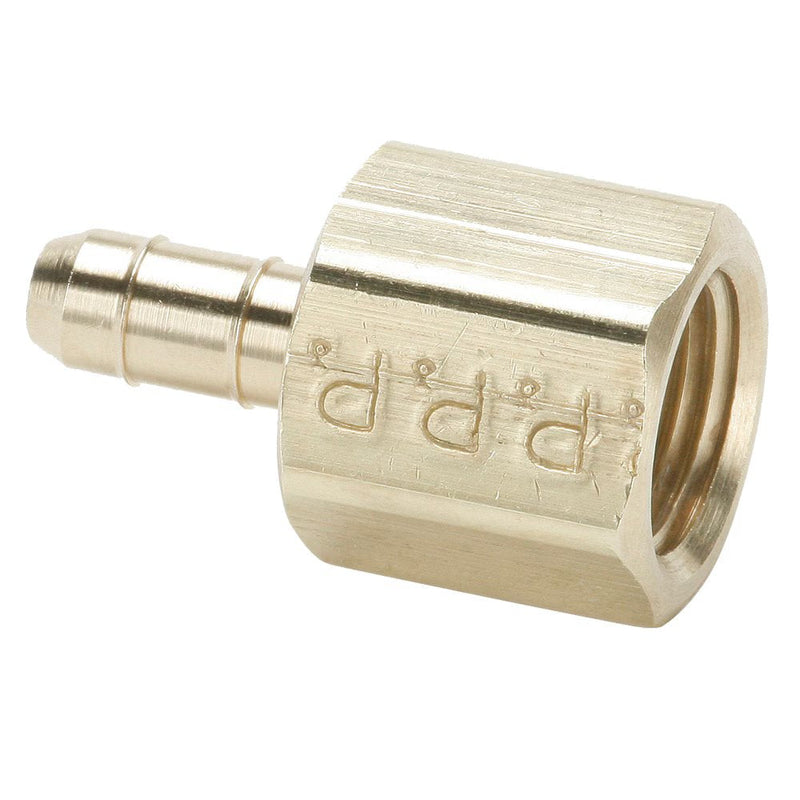

26-4-2 by Parker | Dubl-Barb® Fittings | 1/4" Tube OD x .170" Tube ID x 1/8" Female Pipe Thread | 1/2" Hex | .91" Length | Straight | Brass | Pack of 100

26-4-2 by Parker | Dubl-Barb® Fittings | 1/4" Tube OD x .170" Tube ID x 1/8" Female Pipe Thread | 1/2" Hex | .91" Length | Straight | Brass | Pack of 100

Save $57.51 Save $57.51
$496.18
$496.18 - $496.18
$496.18
$438.67
$438.67 - $438.67
$438.67

by Parker Hannifin
Dubl-Barb® Fittings:Female Connector 26

Package Quantity: 100 Units

Specifications for Variant SKU: 26-4-2 Parker | 100 |
Brand: Dubl-Barb®
Series: 26 Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Vibration Resistance
Product Features:
  • Compact
  • One piece
  • No clamp required
  • Good vibration resistance
Markets:
  • Pneumatic
  • Environmental control
Applications:
  • Pneumatic Systems
  • Climate Control
  • Humidifiers
  • Filters
Specification:
Temperature Range: See Chart Below
Pressure Range: See Chart Below
Compatible Tubing:
  • Polyethylene
Part Number Tube OD Tube ID Pipe Thread Hex (C) L Flow Diameter (D)
26-5/32-2 5/32" .096" 1/8" 1/2" .79" .062"
26-4-2 1/4" .170" 1/8" 1/2" .91" .120"
26-6-2 3/8" .250" 1/8" 1/2" .93" .187"
26-6-4 3/8" .250" 1/4" 11/16" 1.06" .187"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
