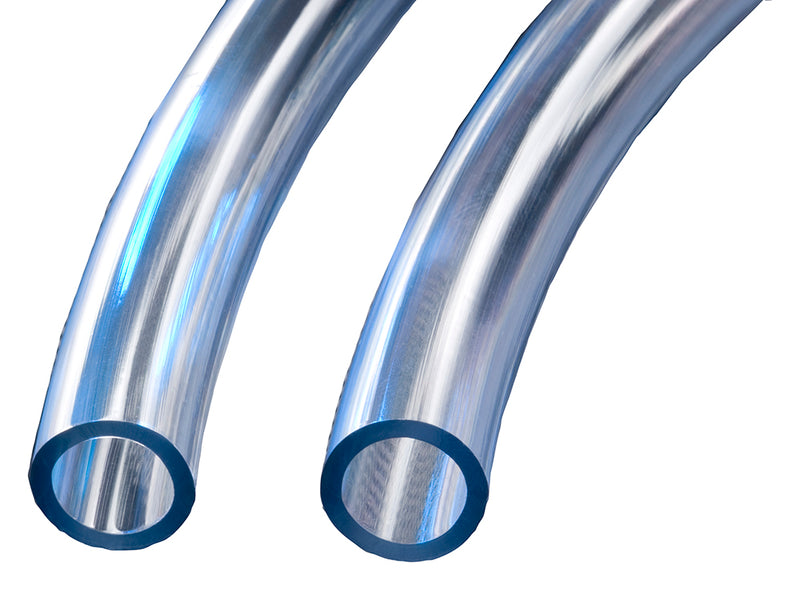

2600-0406X100 Kuri-Tec by Kuriyama | 2600 Series | 85 Shore "A" Ether-Based Clear Food Grade Polyurethane Tubing | 1/4" ID | 3/8" OD | 1/16" Wall Thickness | 100ft Length

2600-0406X100 Kuri-Tec by Kuriyama | 2600 Series | 85 Shore "A" Ether-Based Clear Food Grade Polyurethane Tubing | 1/4" ID | 3/8" OD | 1/16" Wall Thickness | 100ft Length

Save $25.76 Save $25.76
$99.56
$99.56 - $99.56
$99.56
$73.80
$73.80 - $73.80
$73.80

Kuri Tec® by Kuriyama
2600 Series | 85 Shore "A" Ether-Based Clear Food Grade Polyurethane Tubing

Clear polyurethane ether-based food grade tubing for transfer of air, fluids and abrasive slurries.

The clear 2600 material conforms to FDA, NSF, and RoHS requirements.

Package Quantity: 100 Foot

Specifications for Variant SKU: 2600-0406X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 2600 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.375in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant
General Applications:
  • Transfer of air and fluids under severe conditions.
  • Feed and return lines.
  • Abrasive slurry transfer.
  • Granular transfer lines.
  • Robotics control lines.
  • Insulating sleeves.
  • Lubrication lines.
  • Metering pumps.
  • Note: Not recommended for transfer of brake fluids.
Construction:
  • 85 Shore "A" Durometer clear ether-based polyurethane tubing. The clear 2600 material conforms to FDA and NSF requirements. Also in compliance with RoHS requirements.
Service Temperature Range:
  • -40°F (-40°C) to +175°F (+80°C)
Features and Advantages:
  • Abrasion and cut resistance.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to ozone, solvents and fuel.
  • Good resistance to hydrolysis.
  • Clear tubing allows see-through convenience.
  • Complies with RMA's Class A designation for high oil resistance.
  • Silicone-free.
  • One-piece lengths.
  • Phthalate Free.
Specifications:
  • FDA
  • NSF
  • RoHS
Notes:
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed
Part Number Nominal ID Nominal OD Nominal Wall Max Working
Pressure		 Approx. Weight
per Pkg
in mm in mm in mm (PSI)
@70°F
(20°C)		 (PSI)
@122°F
(50°C)
2600-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 100 PSI 75 PSI 2.0 lbs.
2600-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 75 PSI 50 PSI 3 lbs.
2600-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 60 PSI 45 PSI 3.5 lbs.
2600-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 35 PSI 4.0 lbs.
2600-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 30 PSI 5 lbs.
2600-0812X100 1/2" 12.7mm 3/4" 19.1mm 1/8" 3.2mm 60 PSI 45 PSI 13 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
