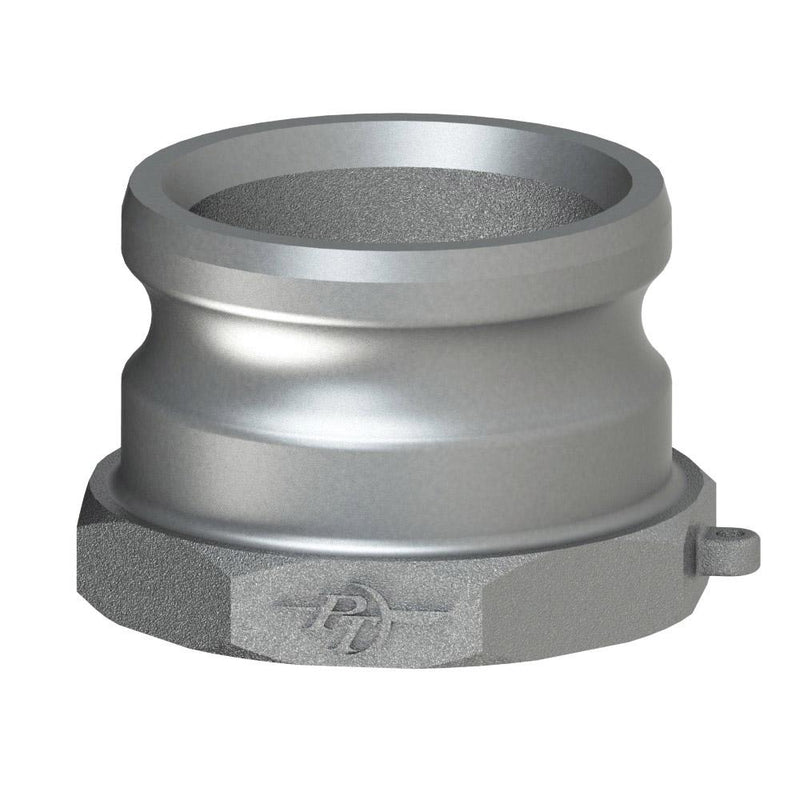

2600120 (20A) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | Hastelloy

Name: 2600120 (20A) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | Hastelloy
Brand: PT-Coupling
SKU: 2600120 PT-Coupling
Price: 219.45 USD
Availability: InStock

Save $129.55

$349.00

$349.00 - $349.00

$349.00

$219.45

$219.45 - $219.45

$219.45

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type A | Adapter x Female NPT | Hastelloy

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Specifications for Variant SKU: 2600120 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2in Male Cam & Groove, 2in Female NPT
Material(s):	Hastelloy

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Adapter Size	Female NPT Thread	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
E05A	2600101	1/2"	1/2"	1.60"	0.53"	1.12"	-	250 PSI
07A	2600107	3/4"	3/4"	1.62"	0.75"	1.49"	-	250 PSI
10A	2600110	1"	1"	1.91"	0.88"	1.76"	0.34"	250 PSI
15A	2600115	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	250 PSI
20A	2600120	2"	2"	2.54"	1.72"	2.92"	0.31"	250 PSI
30A	2600130	3"	3"	2.84"	2.80"	4.22"	0.44"	200 PSI
40A	2600140	4"	4"	3.16"	3.78"	5.41"	0.39"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
