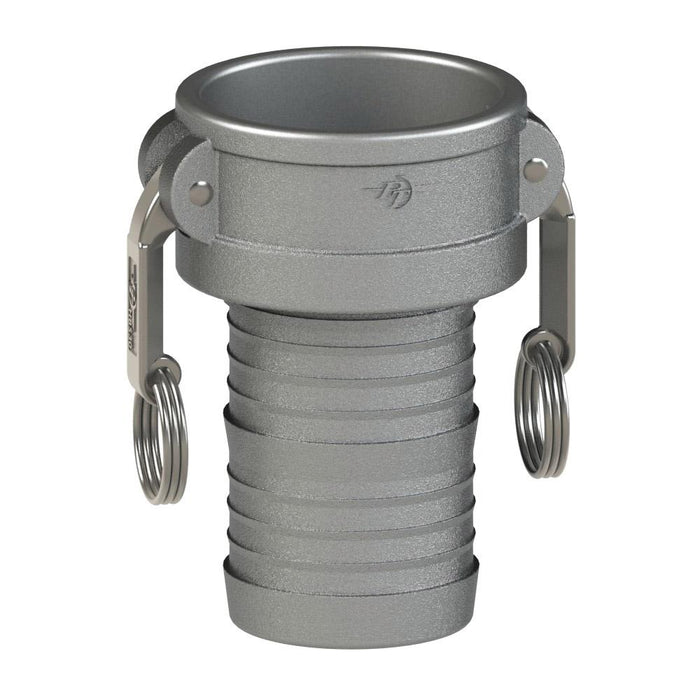

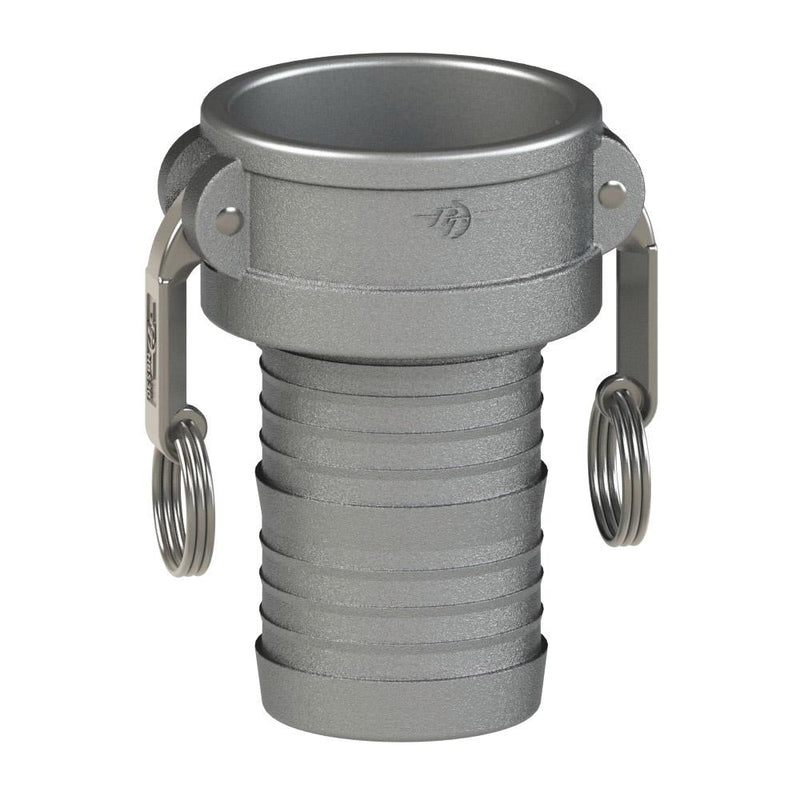

2600330 (30C) by PT-Coupling | Corrosion Resistant Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Hastelloy | Buna-N Seal

Save $80.19

$721.67

$721.67 - $721.67

$721.67

$641.48

$641.48 - $641.48

$641.48

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Hastelloy | Buna-N Seal

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2600330 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Hastelloy
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
07C	2600307	3/4"	3/4"	4.51"	2.11"	3.55"	1.25"	0.53"	0.40"	250 PSI
10C	2600310	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	250 PSI
15C	2600315	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15"	250 PSI
20C	2600320	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	250 PSI
30C	2600330	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	200 PSI
40C	2600340	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
