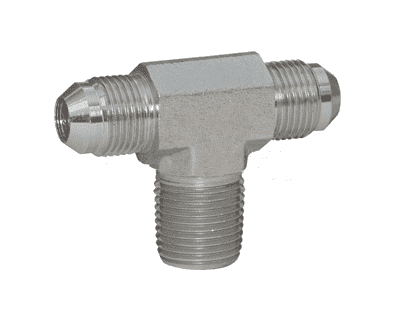

2601-16-16-16 Dixon Zinc Plated Steel (Two) 1-5/16"-12 Male 37 deg. JIC Flare x 1"-11-1/2 Male NPTF Branch Tee

2601-16-16-16 Dixon Valve Zinc Plated Steel (Two) 1-5/16"-12 Male 37 deg. JIC Flare x 1"-11-1/2 Male NPTF Branch Tee

Save $2.19 Save $2.19
$19.67
$19.67 - $19.67
$19.67
$17.48
$17.48 - $17.48
$17.48

SAE / JIC Fittings - Male 37 deg. JIC Flare x Male NPTF Branch Tees - Zinc Plated Steel
Specifications for Variant SKU: 2601-16-16-16 Dixon
Shape (Orientation): Tee
Ends Configuration: 1in Male JIC, 1in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • Reference SAE070425.
Part Number Male (2) 37 deg. JIC Flare Male NPTF Pipe Working Pressure Weight (Lbs.)
2601-4-4-4 7/16"-20 1/4"-18 5000 PSI 0.1190
2601-6-6-4 9/16"-18 1/4"-18 5000 PSI 0.1390
2601-6-6-6 9/16"-18 3/8"-18 4000 PSI 0.2090
2601-8-8-8 3/4"-16 1/2"-14 3000 PSI 0.3460
2601-10-10-8 7/8"-14 1/2"-14 3000 PSI 0.4090
2601-12-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.6430
2601-16-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 1.0080
