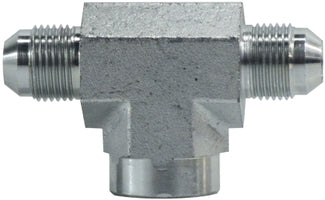

2602-10-10-08 by Midland | Hydraulic Adapter | Tee | 1/2" Female NPTF x 5/8" Male JIC 37° Flare x 5/8" Male JIC 37° Flare | Steel

2602-10-10-08 by Midland | Hydraulic Adapter | Tee | 1/2" Female NPTF x 5/8" Male JIC 37° Flare x 5/8" Male JIC 37° Flare | Steel

Save $0.86 Save $0.86
$7.72
$7.72 - $7.72
$7.72
$6.86
$6.86 - $6.86
$6.86

Midland Industries
Hydraulic Adapters: Female Pipe Branch Tee - Steel

Inventory @ Manufacturers Warehouse: 6 Units
Specifications for Variant SKU: 2602-10-10-08 Midland
Shape (Orientation): Tee
Ends Configuration: 1/2in Female NPTF, 5/8in Male JIC, 5/8in Male JIC, Some Ends Match
Material(s): Steel
Specifications:
  • SAE 070427
  • MS 51513
Technical Info:
Crossover Series:
2602 2031R OTX 1228R C6566
Part Number Male JIC 37° Flare
(1 & 2)		 Male JIC 37° Flare
Threads
(1 & 2)		 Female NPTF
(3)
260232 3/16" 3/8-24 1/8"
260242 1/4" 7/16-20 1/4"
260244
(2602-4-4) 		1/4" 7/16-20 1/4"
260252 5/16" 1/2-20 1/8"
260264 3/8" 9/16-18 1/4"
260266
(2602-6-6) 		3/8" 9/16-18 3/8"
260284 1/2" 3/4-16 1/4"
260288
(2602-8-8) 		1/2" 3/4-16 1/2"
2602-10-10-08 5/8" 7/8-14 1/2"
26022020 1-1/4" 1-5/8-12 1-1/4"
26022424 1-1/2" 1-7/8-12 1-1/2"
26023232 2" 2-1/2-12 2"
