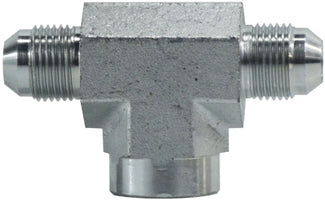

260232 by Midland | Hydraulic Adapter | Tee | 1/8" Female NPTF x 3/16" Male JIC 37° Flare x 3/16" Male JIC 37° Flare | Steel

260232 by Midland | Hydraulic Adapter | Tee | 1/8" Female NPTF x 3/16" Male JIC 37° Flare x 3/16" Male JIC 37° Flare | Steel

Save $0.25 Save $0.25
$2.22
$2.22 - $2.22
$2.22
$1.97
$1.97 - $1.97
$1.97

Midland Industries
Hydraulic Adapters: Female Pipe Branch Tee - Steel
Specifications for Variant SKU: 260232 Midland
Shape (Orientation): Tee
Ends Configuration: 1/8in Female NPTF, 3/16in Male JIC, 3/16in Male JIC, Some Ends Match
Material(s): Steel
Specifications:
  • SAE 070427
  • MS 51513
Technical Info:
Crossover Series:
2602 2031R OTX 1228R C6566
Part Number Male JIC 37° Flare
(1 & 2)		 Male JIC 37° Flare
Threads
(1 & 2)		 Female NPTF
(3)
260232 3/16" 3/8-24 1/8"
260242 1/4" 7/16-20 1/4"
260244
(2602-4-4) 		1/4" 7/16-20 1/4"
260252 5/16" 1/2-20 1/8"
260264 3/8" 9/16-18 1/4"
260266
(2602-6-6) 		3/8" 9/16-18 3/8"
260284 1/2" 3/4-16 1/4"
260288
(2602-8-8) 		1/2" 3/4-16 1/2"
2602-10-10-08 5/8" 7/8-14 1/2"
26022020 1-1/4" 1-5/8-12 1-1/4"
26022424 1-1/2" 1-7/8-12 1-1/2"
26023232 2" 2-1/2-12 2"
