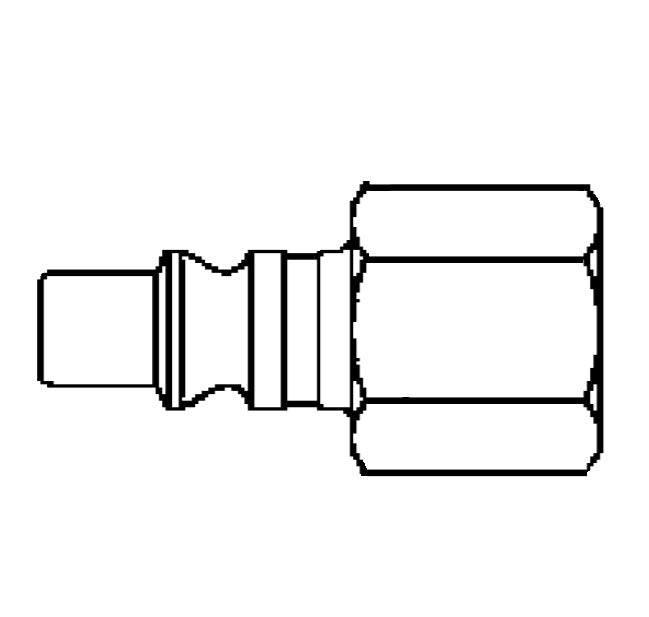

2609 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series / 210 Series | 1/4" Female NPTF x 1/4" Body Size | Plug | Steel

2609 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series / 210 Series | 1/4" Female NPTF x 1/4" Body Size | Plug | Steel

$3.11 - $3.11
$3.11
$3.11 - $3.11
$3.11

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind.

The universal design makes the Auto-Flo an extremely flexible coupling series.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2609 Danfoss
Brand: Hansen
Series: Auto-Flo 23 Series / 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
  • Sleeve guard protects against accidental disconnection.
Applications & Markets:
  • General Pneumatics
  • Air Tools
  • Construction
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Specifications:
  • Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru-Flate Interchange plugs/males.
Series Max. Operating Pressure Min. Burst Pressure Rated Flow
Auto-Flo 23 10 bar 150 psi 40 bar 600 psi 792 lpm 28 gpm
Auto-Flo 24 10 bar 150 psi 40 bar 600 psi 1,274 lpm 45 gpm
Interchangeability
Auto-Flo 23 Auto-Flo 24
US Industrial Interchange
ISO 6150 Series B		 (Euro Interchange)
A-A-59439
(former MIL-C-4109)		 CEJN 320
Tru-Flate Interchange
ARO 210 Interchange		 RECTUS 25
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Plug/Male (ARO 210)
(Figure 3)
Plug/Male (Tru-Flate)
(Figure 4)
Auto-Flo 23 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
B23AS25F Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS25FBS Socket/Female 1/4" 1/4" 1/4-19 Female BSPP Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS37F Socket/Female 1/4" 3/8" 3/8-18 Female NPTF Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS37FBS Socket/Female 1/4" 3/8" 3/8-19 Female BSPP Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
Auto-Flo 23 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
11 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
11G** Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 2 2.44"
(61.98mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
13 Plug/Male 1/4" 1/8" 1/8-27 Female NPTF Steel 2 1.47"
(37.34mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
15E Plug/Male 1/4" 3/8" 3/8-18 Female NPTF Steel 2 1.69"
(42.93mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)
11B Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Brass 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
LL11 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Stainless Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
2609 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 3 1.55"
(39.37mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
2609B Plug/Male 1/4" 1/4" 1/4-19 Female BSPP Steel 3 1.52"
(38.61mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
20AP37F Plug/Male 1/4" 3/8" 3/8-18 Female NPTF Steel 3 1.61"
(40.89mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)
21AP25F Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 4 1.53"
(38.86mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
11NK Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Nickel Plated Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)

** With Bleeder Ball Check - Reduces Hose Whip
