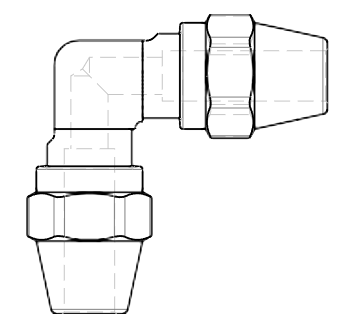

265AB-8 by Parker | Air Brake - AB Fittings | Union | 1/2" Tube Size x 11/16" Thread | 90° Elbow | Brass | Pack of 10

265AB-8 by Parker | Air Brake - AB Fittings | Union | 1/2" Tube Size x 11/16" Thread | 90° Elbow | Brass | Pack of 10

Save $44.00 Save $44.00
$355.20
$355.20 - $355.20
$355.20
$311.20
$311.20 - $311.20
$311.20

by Parker Hannifin
Air Brake – AB Fittings:Union Elbow 265AB

Package Quantity: 10 Units

Specifications for Variant SKU: 265AB-8 Parker | 10 |
Series: 265AB Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade, Reuseable
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Straight Thread L M Flow Diameter (D)
265AB-4 1/4" 7/16"-24 1.20" .62" .189"
265AB-6 3/8" 17/32"-24 1.68" .79" .314"
265AB-8 1/2" 11/16"-20 1.89" .93" .408"
265AB-10 5/8" 13/16"-18 2.18" 1.09" .533"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
