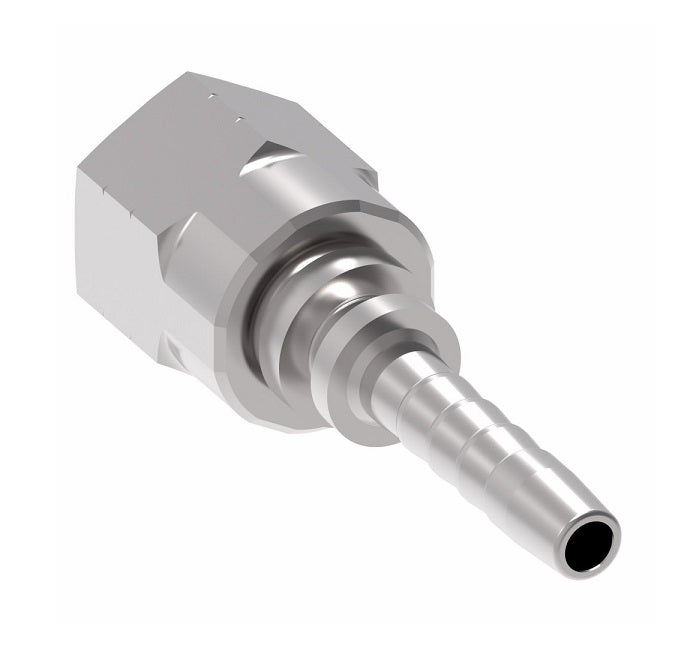

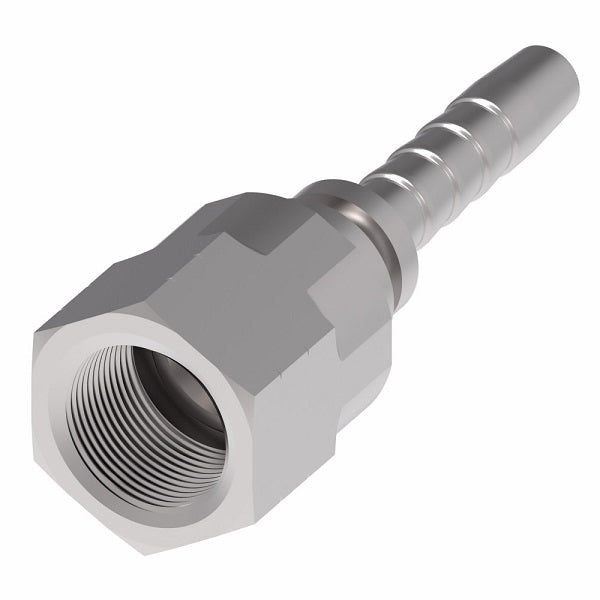

26711-10-08ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
26711-10-08ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
26711-10-08ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
26711-10-08ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

26711-10-08ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

$7.28 - $7.28
$7.28
$7.28 - $7.28
$7.28

Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - Straight
Specifications for Variant SKU: 26711-10-08ZF Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1
26711-04-04ZF -04 7/16"-20 6 -04 1.69" 0.59" 0.16" 14mm
26711-06-04ZF -06 9/16"-18 6 -04 1.71" 0.61" 0.16" 19mm
26711-06-06ZF -06 9/16"-18 10 -06 1.79" 0.61" 0.28" 19mm
26711-08-06ZF -08 3/4"-16 10 -06 1.87" 0.69" 0.28" 22mm
26711-08-08ZF -08 3/4"-16 12 -08 1.97" 0.73" 0.39" 22mm
26711-10-08ZF -10 7/8"-14 12 -08 1.99" 0.75" 0.39" 27mm
26711-10-10ZF -10 7/8"-14 16 -10 2.11" 0.77" 0.47" 27mm
26711-12-12ZF -12 1-1/16"-12 20 -12 2.36" 0.85" 0.59" 32mm
26711-16-16ZF -16 1-5/16"-12 25 -16 2.76" 0.91" 0.83" 41mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
