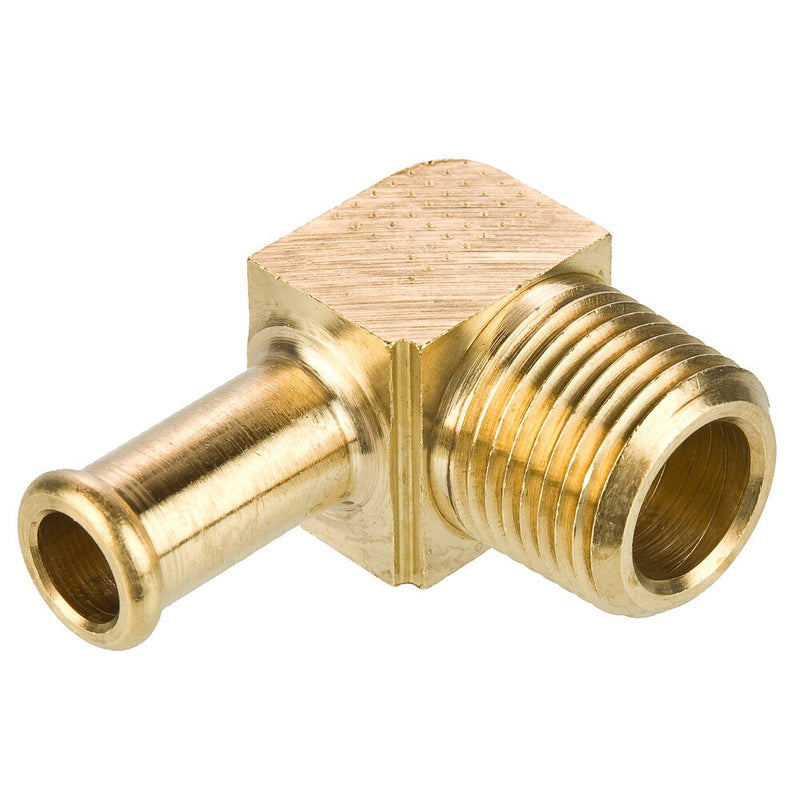

269HB-8-6 by Parker | Hose Barb Fittings | 1/2" Beaded Hose Barb x 3/8" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

Save $22.35

$160.22

$160.22 - $160.22

$160.22

$137.87

$137.87 - $137.87

$137.87

by Parker Hannifin
Hose Barb Fittings:Beaded Hose Barb 90° Elbow Tube to Male Pipe 269HB

Package Quantity: 10 Units

Specifications for Variant SKU: 269HB-8-6 Parker \| 10 \|
Series:	269HB Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Reuseable

Specification:
Product Features:	All brass construction Fluorocarbon O-rings NPTF, SAE straight thread, metric thread ends Reusable Clamp required
Markets:	Industrial Construction Heavy duty truck Mobile
Applications:	Air Lines Water Line Cooling Lines
Temperature Range:	-40° to +160° F (-40° to +71.1° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	ID Hose Size	Pipe Thread	L	M	N	Flow Diameter (D)
269HB-6-6	3/8"	3/8"	1.19"	.78"	.88"	.281"
269HB-8-4	1/2"	1/4"	1.16"	.78"	.99"	.310"
269HB-8-6	1/2"	3/8"	1.16"	.78"	1.08"	.406"
269HB-8-8	1/2"	1/2"	1.28"	.78"	1.25"	.406"
269HB-10-4	5/8"	1/4"	1.13"	.78"	.99"	.312"
269HB-10-6	5/8"	3/8"	1.16"	.78"	.99"	.406"
269HB-10-8	5/8"	1/2"	1.28"	.78"	1.25"	.501"
269HB-12-8	3/4"	1/2"	1.28"	.78"	1.25"	.563"
269HB-12-12	3/4"	3/4"	1.33"	.78"	1.27"	.625"
