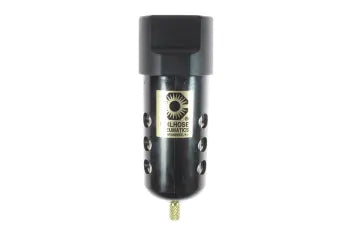

26F2-DX by Coilhose | 26 Series Filter | Auto Drain | 5 Micron Element | 1/4" Pipe Size | Die Cast Aluminum

26F2-DX by Coilhose | 26 Series Filter | Auto Drain | 5 Micron Element | 1/4" Pipe Size | Die Cast Aluminum

Save $63.46 Save $63.46
$158.65
$158.65 - $158.65
$158.65
$95.19
$95.19 - $95.19
$95.19
Coilhose Pneumatics - Filters, Regulators & Lubricators - 26 Series - Filters
Specifications for Variant SKU: 26F2-DX Coilhose
Material(s): Aluminum, Zinc Die Cast, Polypropylene
Overview:
  • The 26 Series Filters offer a balance of compact size and optimum flow. Utilizing a 3/8" die cast aluminum body, this series is perfect for applications where performance, small size and low cost are important. Available in 1/4" and 3/8" port sizes.
Features:
  • 40 micron or 5 micron filter element
  • Bowl guard supplied standard
  • 3.8 oz bowl volume
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: Plastic Bowl: 150 PSI
Metal Bowl: 250 PSI		 Maximum Operating Temp: Plastic Bowl: 150° F
Metal Bowl: 250° F
Filter Element: Standard: 40 Micron
Optional: 5 Micron		 Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Zinc Die Cast
Body: Zinc Die Cast
Filter Element: Porous Polypropylene
Height: 6" Maximum Diameter: 2"
Bowl Capacity: 3.8 oz

Supply Pressure Pressure Drop
1 2 3 4 5
1/4" at 25 PSI 10 SCFM 19 SCFM 22 SCFM 25 SCFM 26 SCFM
3/8" at 25 PSI 15 SCFM 22 SCFM 30 SCFM 36 SCFM 33 SCFM
1/4" at 100 PSI 22 SCFM 32 SCFM 40 SCFM 45 SCFM 50 SCFM
3/8" at 100 PSI 30 SCFM 41 SCFM 52 SCFM 60 SCFM 65 SCFM

Model Pipe Size Drain Material Max Pressure Micron Level
26F2 1/4" Manual Polycarbonate 150 PSI 40 Micron Element
26F2-SX 1/4" Manual Metal w/ Sight glass 250 PSI 5 Micron Element
26F2-S 1/4" Manual Metal w/ Sight glass 250 PSI 40 Micron Element
26F2-MX 1/4" Manual Metal Bowl 250 PSI 5 Micron Element
26F2-M 1/4" Manual Metal Bowl 250 PSI 40 Micron Element
26F2-DX 1/4" Automatic Polycarbonate 150 PSI 5 Micron Element
26F2-DS 1/4" Automatic Metal w/ Sight glass 150 PSI 40 Micron Element
26F2-DMX 1/4" Automatic Metal Bowl 250 PSI 5 Micron Element
26F2-DM 1/4" Automatic Metal Bowl 250 PSI 40 Micron Element
26F2-D 1/4" Automatic Polycarbonate 150 PSI 40 Micron Element
26F2-CS* 1/4" Manual Polycarbonate 150 PSI 40 Micron Element
26F2-X 1/4" Manual Polycarbonate 150 PSI 5 Micron Element

26F3 3/8" Manual Polycarbonate 150 PSI 40 Micron Element
26F3-SX 3/8" Manual Metal w/ Sight glass 250 PSI 5 Micron Element
26F3-S 3/8" Manual Metal w/ Sight glass 250 PSI 40 Micron Element
26F3-MX 3/8" Manual Metal Bowl 250 PSI 5 Micron Element
26F3-M 3/8" Manual Metal Bowl 250 PSI 40 Micron Element
26F3-DX 3/8" Automatic Polycarbonate 150 PSI 5 Micron Element
26F3-DS 3/8" Automatic Metal w/ Sight glass 150 PSI 40 Micron Element
26F3-DMX 3/8" Automatic Metal Bowl 250 PSI 5 Micron Element
26F3-DM 3/8" Automatic Metal Bowl 250 PSI 40 Micron Element
26F3-D 3/8" Automatic Polycarbonate 150 PSI 40 Micron Element
26F3-CS* 3/8" Manual Polycarbonate 150 PSI 40 Micron Element
26F3-X 3/8" Manual Polycarbonate 150 PSI 5 Micron Element
* Clamshell Packaging
