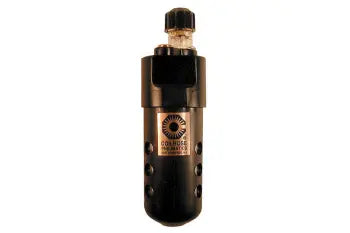

26L2 by Coilhose | 26 Series Lubricator | 1/4" Pipe Size | Die Cast Aluminum

26L2 by Coilhose | 26 Series Lubricator | 1/4" Pipe Size | Die Cast Aluminum

Save $41.14 Save $41.14
$102.85
$102.85 - $102.85
$102.85
$61.71
$61.71 - $61.71
$61.71
Coilhose Pneumatics - Filters, Regulators & Lubricators - 26 Series - Lubricators
Specifications for Variant SKU: 26L2 Coilhose
Material(s): Aluminum, Zinc
Overview:
  • The 26 Series Lubricators offer a balance of compact size and optimum flow. Utilizing a 3/8" die cast aluminum body, this series is perfect for applications where performance, small size and low cost are important. Available in 1/4" and 3/8" port sizes.
Features:
  • Once delivery rate is set, proportional oil-to-air delivery rate assures even lubrication at all times.
  • Tamperproof cap allows oil delivery rate to be locked in.
  • Refills through fill port does not require depressurization.
  • Bowl guard is standard.
  • Metal bowl options available.
  • 3.8 oz bowl volume.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: Plastic Bowl: 150 PSI
Metal Bowl: 250 PSI		 Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Zinc Die Cast
Body: Zinc Die Cast
Height: 6 1/2" Weight: 1/2 lb.
Maximum Diameter: 2" Bowl Capacity: 3.8 oz.

Supply Pressure Pressure Drop
1 2 3 4 5
1/4" at 25 PSI 3 SCFM 6 SCFM 7.5 SCFM 9 SCFM 11 SCFM
3/8" at 25 PSI 8 SCFM 18 SCFM 26 SCFM 30 SCFM 32 SCFM
1/4" at 100 PSI 6.5 SCFM 8 SCFM 13 SCFM 16 SCFM -
3/8" at 100 PSI 29 SCFM 43 SCFM 52.5 SCFM 58 SCFM 62 SCFM

Model Pipe Size Material Max Pressure
26L2 1/4" Polycarbonate 150 PSI
26L2-CS* 1/4" Polycarbonate 150 PSI
26L2-M 1/4" Metal 250 PSI
26L2-S 1/4" Metal w/ Sight glass 250 PSI

26L3 3/8" Polycarbonate 150 PSI
26L3-CS* 3/8" Polycarbonate 150 PSI
26L3-M 3/8" Metal 250 PSI
26L3-S 3/8" Metal w/ Sight glass 250 PSI
* Clamshell Packaging
