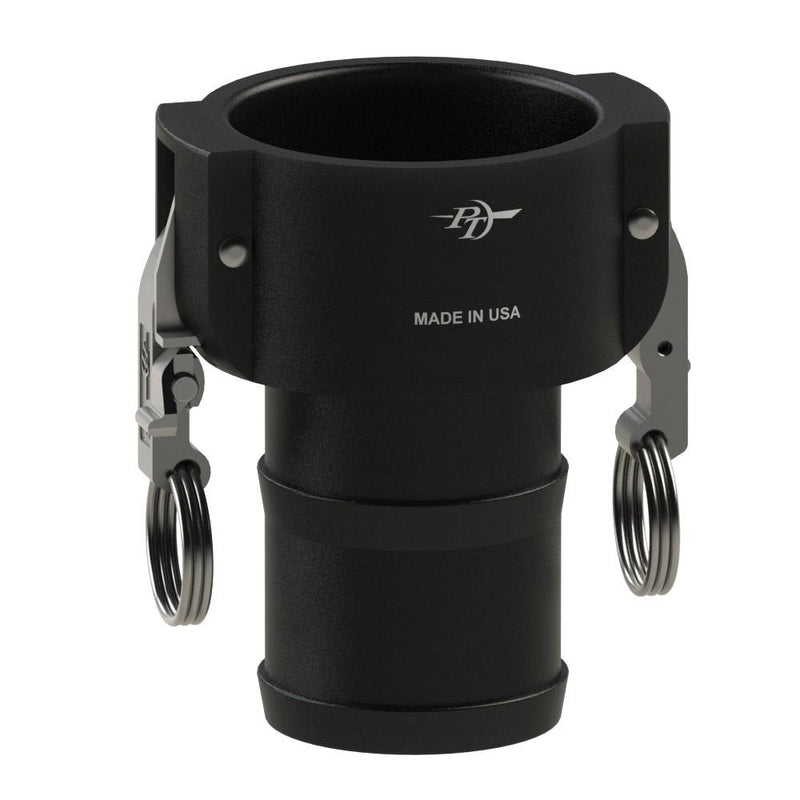

2700320L2 (20C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 2" Coupler x 2" Hose Shank | Polypropylene | Buna-N Seal

Save $18.47

$49.78

$49.78 - $49.78

$49.78

$31.31

$31.31 - $31.31

$31.31

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Polypropylene | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 2700320L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	2in Female Cam & Groove, 2in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. Glass-fiber reinforced for strength. Good abrasion and corrosion resistance. Good chemical resistance. Color: Black Use with water and coolants. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10C SLII	2700310L2	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	100 PSI
12C-SLII	2700312L2	1-1/4"	1-1/4"	6.86"	3.26"	4.44"	1.84"	0.97"	0.88"	100 PSI
15C-SLII	2700315L2	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15	100 PSI
20C-SLII	2700320L2	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	100 PSI
40C-SLII	2700340L2	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
