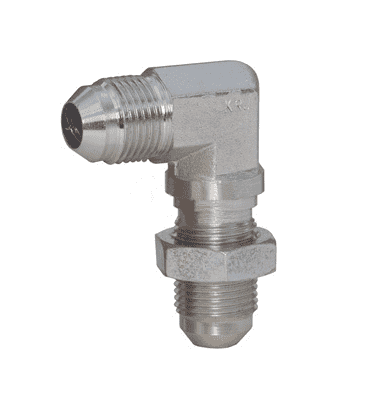

2701LN-12 Dixon Zinc Plated Steel 90 deg. Bulkhead Elbow with Lock Nut - 1-1/16"-12 Male 37 deg. Flare

2701LN-12 Dixon Valve Zinc Plated Steel 90 deg. Bulkhead Elbow with Lock Nut - 1-1/16"-12 Male 37 deg. Flare

Save $6.77 Save $6.77
$16.93
$16.93 - $16.93
$16.93
$10.16
$10.16 - $10.16
$10.16

SAE / JIC Fittings - 90 deg. Bulkhead Elbow with Lock Nut - Zinc Plated Steel
Specifications for Variant SKU: 2701LN-12 Dixon
Shape (Orientation): 90 Degree
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 070701.
Part Number Male 37 deg. Flare Working Pressure Weight (Lbs.)
2701LN-4 7/16"-20 5000 PSI 0.1090
2701LN-6 9/16"-18 5000 PSI 0.1680
2701LN-8 3/4"-16 4500 PSI 0.3530
2701LN-10 7/8"-14 3500 PSI 0.5000
2701LN-12 1-1/16"-12 3500 PSI 0.8300
2701LN-16 1-5/16"-12 3000 PSI 1.2020
