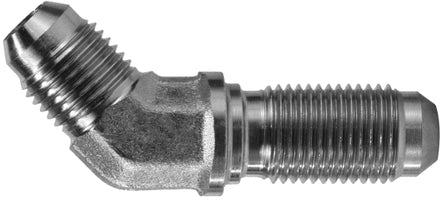

2702-24-24 by Midland | Hydraulic JIC Bulkhead Union | 1-1/2" Male JIC 37° Flare x 1-1/2" Male JIC 37° Flare | 45° Elbow | Steel

2702-24-24 by Midland | Hydraulic JIC Bulkhead Union | 1-1/2" Male JIC 37° Flare x 1-1/2" Male JIC 37° Flare | 45° Elbow | Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Midland Industries
Hydraulic Adapters: JIC Bulkhead Union 45° Elbow - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.
Specifications for Variant SKU: 2702-24-24 Midland
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Male JIC, 1-1/2in Male JIC, Some Ends Match
Material(s): Steel
Specifications:
  • SAE 070801
  • MS 51509
Technical Info:
Crossover Series:
2702 2042 WNTX 1261 C5375
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare
Bulkhead
(2)		 Male JIC 37° Flare
Thread		 Lock Nut Part Number
(Not Included - Must be Purchased Separately)
27024
(2702-4) 		1/4" 1/4" 7/16-20 03064
(0306-4)
2702-05-05 5/16" 5/16" 1/2-20 -
27026
(2702-6) 		3/8" 3/8" 9/16-18 03066
(0306-6)
27028
(2702-8) 		1/2" 1/2" 3/4-16 03068
(0306-8)
270210
(2702-10) 		5/8" 5/8" 7/8-14 030610
(0306-10)
270212
(2702-12) 		3/4" 3/4" 1-1/16-12 030612
(0306-12)
270216
(2702-16) 		1" 1" 1-5/16-12 030616
(0306-16)
270220 1-1/4" 1-1/4" 1-5/8-12 030620
(0306-20)
2702-24-24 1-1/2" 1-1/2" 1-7/8-12 -
