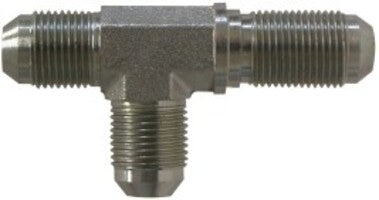

27044 (2704-4) Midland Hydraulic JIC Bulkhead Run Tee - 7/16-20 Male JIC 37° Flare x 7/16-20 Male JIC 37° Flare x 7/16-20 Male JIC 37° Flare - Steel

27044 by Midland | Hydraulic JIC Bulkhead Run | 7/16-20 Male JIC 37° Flare x 7/16-20 Male JIC 37° Flare x 7/16-20 Male JIC 37° Flare | Tee | Steel

Save $3.67 Save $3.67
$9.18
$9.18 - $9.18
$9.18
$5.51
$5.51 - $5.51
$5.51

Midland Industries
Hydraulic Adapters: JIC Bulkhead Run Tee - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 2 Units
Specifications for Variant SKU: 27044 Midland
Shape (Orientation): Tee
Ends Configuration: 1/4in Male JIC, 1/4in Male JIC, 1/4in Male JIC, Some Ends Match
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Specifications
Specifications:
  • SAE 070958
  • MS 51516
Technical Info:
Crossover Series:
2704 203008 WJJT 1284 C5726
Part Number Male JIC 37° Flare
(1 & 3)		 Male JIC 37° Flare
Bulkhead
(2)		 Male JIC 37° Flare
Thread		 Lock Nut Part Number
(Not Included - Must be Purchased Separately)
27044
(2704-4) 		1/4" 1/4" 7/16-20 03064
(0306-4)
27046
(2704-6) 		3/8" 3/8" 9/16-18 03066
(0306-6)
27048
(2704-8) 		1/2" 1/2" 3/4-16 03068
(0306-8)
270410
(2704-10) 		5/8" 5/8" 7/8-14 030610
(0306-10)
270412
(2704-12) 		3/4" 3/4" 1-1/16-12 030612
(0306-12)
270416
(2704-16) 		1" 1" 1-5/16-12 030616
(0306-16)
2704-20-20-20 1-1/4" 1-1/4" 1-5/8-12 030620
(0306-20)
2704-24-24-24 1-1/2" 1-1/2" 1-7/8-12 -
