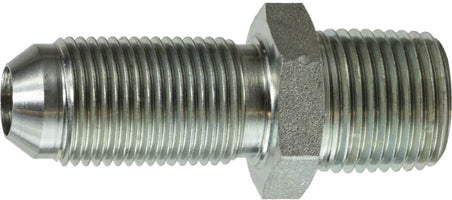

270642 by Midland | Hydraulic JIC to Male Bulkhead | 1/4" Male JIC 37° Flare x 1/8" Male Pipe | Steel

Name: 270642 by Midland | Hydraulic JIC to Male Bulkhead | 1/4" Male JIC 37° Flare x 1/8" Male Pipe | Steel
Brand: Midland Industries
SKU: 270642 Midland
Price: 1.91 USD
Availability: InStock

Save $0.24

$2.15

$2.15 - $2.15

$2.15

$1.91

$1.91 - $1.91

$1.91

Midland Industries
Hydraulic Adapters: JIC to Male Bulkhead - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 214 Units

Quantity

Specifications for Variant SKU: 270642 Midland
Ends Configuration:	1/4in Male JIC, 1/8in Male NPT
Material(s):	Steel

Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
2706	2240


Part Number	Male JIC 37° Flare Bulkhead (1)	Male JIC 37° Flare Thread	Male Pipe (2)	Lock Nut Part Number (Not Included - Must be Purchased Separately)
270642	1/4"	7/16-20	1/8"	03064 (0306-4)
270644 (2706-4-4)	1/4"	7/16-20	1/4"	03064 (0306-4)
270666 (2706-6-6)	3/8"	9/16-18	3/8"	03066 (0306-6)
270668	3/8"	9/16-18	1/2"	03066 (0306-6)
270686	1/2"	3/4-16	3/8"	03068 (0306-8)
270688 (2706-8-8)	1/2"	3/4-16	1/2"	03068 (0306-8)
27061212 (2706-12-12)	3/4"	1-1/16-12	3/4"	030612 (0306-12)
27061616 (2706-16-16)	1"	1-5/16-12	1"	030616 (0306-16)
27062020	1-1/4"	1-5/8-12	1-1/4"	030620 (0306-20)
27062424	1-1/2"	1-7/8-12	1-1/2"	-
27063232	2"	2-1/2-12	2"	-
