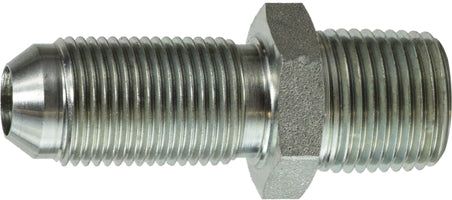

270644 (2706-4-4) Midland Hydraulic JIC to Male Bulkhead - 7/16-20 Male JIC 37° Flare - 1/4" Male Pipe - Steel

270644 by Midland | Hydraulic JIC to Male Bulkhead | 7/16-20 Male JIC 37° Flare x 1/4" Male Pipe | Steel

Save $1.53 Save $1.53
$3.83
$3.83 - $3.83
$3.83
$2.30
$2.30 - $2.30
$2.30

Midland Industries
Hydraulic Adapters: JIC to Male Bulkhead - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 1037 Units
Specifications for Variant SKU: 270644 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 1/4in Male NPT
Material(s): Steel
Technical Info:
Crossover Series:
2706 2240
Part Number Male JIC 37° Flare
Bulkhead
(1)		 Male JIC 37° Flare
Thread		 Male Pipe
(2)		 Lock Nut Part Number
(Not Included - Must be Purchased Separately)
270642 1/4" 7/16-20 1/8" 03064
(0306-4)
270644
(2706-4-4) 		1/4" 7/16-20 1/4" 03064
(0306-4)
270666
(2706-6-6) 		3/8" 9/16-18 3/8" 03066
(0306-6)
270668 3/8" 9/16-18 1/2" 03066
(0306-6)
270686 1/2" 3/4-16 3/8" 03068
(0306-8)
270688
(2706-8-8) 		1/2" 3/4-16 1/2" 03068
(0306-8)
27061212
(2706-12-12) 		3/4" 1-1/16-12 3/4" 030612
(0306-12)
27061616
(2706-16-16) 		1" 1-5/16-12 1" 030616
(0306-16)
27062020 1-1/4" 1-5/8-12 1-1/4" 030620
(0306-20)
27062424 1-1/2" 1-7/8-12 1-1/2" -
27063232 2" 2-1/2-12 2" -
