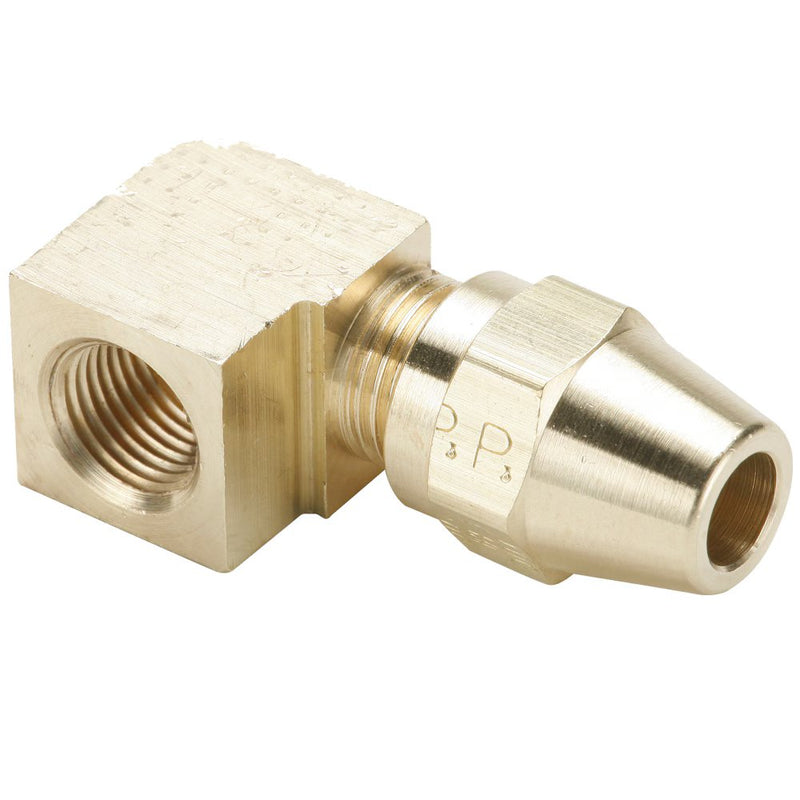

270AB-4-4 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/4" Female Pipe Thread x 7/16" Thread | 90° Elbow | Brass | Pack of 10

270AB-4-4 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/4" Female Pipe Thread x 7/16" Thread | 90° Elbow | Brass | Pack of 10

Save $167.12 Save $167.12
$417.80
$417.80 - $417.80
$417.80
$250.68
$250.68 - $250.68
$250.68

by Parker Hannifin
Air Brake – AB Fittings:Female Elbow 270AB

Package Quantity: 10 Units

Specifications for Variant SKU: 270AB-4-4 Parker | 10 |
Series: 270AB Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade, Reuseable
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
270AB-4-2 1/4" 1/8" 7/16"-24 1.27" .69" .52" .189"
270AB-4-4 1/4" 1/4" 7/16"-24 1.36" .78" .71" .189"
270AB-6-2 3/8" 1/8" 17/32"-24 1.72" .83" .59" .314"
270AB-6-4 3/8" 1/4" 17/32"-24 1.78" .89" .77" .314"
270AB-6-6 3/8" 3/8" 17/32"-24 1.82" .93" .77" .314"
270AB-8-6 1/2" 3/8" 11/16"-20 1.99" 1.03" .82" .408"
270AB-8-8 1/2" 1/2" 11/16"-20 2.09" 1.13" 1.01" .408"
