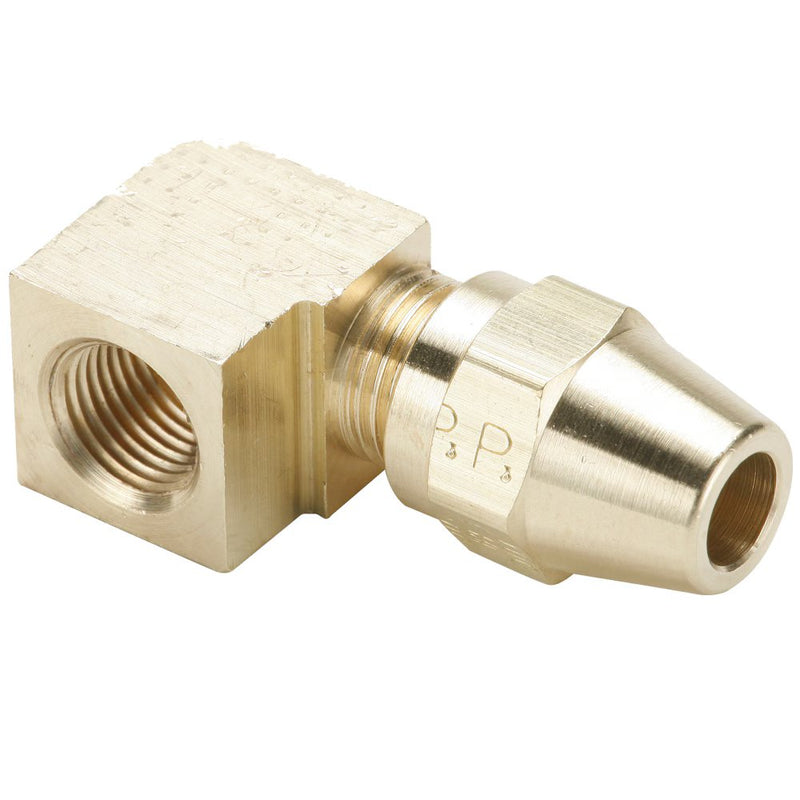

270AB-8-6 by Parker | Air Brake - AB Fittings | 1/2" Tube Size x 3/8" Female Pipe Thread x 11/16" Thread | 90° Elbow | Brass | Pack of 10

Save $212.47

$531.18

$531.18 - $531.18

$531.18

$318.71

$318.71 - $318.71

$318.71

by Parker Hannifin
Air Brake – AB Fittings:Female Elbow 270AB

Package Quantity: 10 Units

Specifications for Variant SKU: 270AB-8-6 Parker \| 10 \|
Series:	270AB Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Fuel Grade, Reuseable

Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 Reusable Pre-applied Thread Sealant
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Copper Air Brake Lines Coolant Lines Fuel Lines
Specification:
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Copper Air Brake Tubing


Part Number	Tube Size	Pipe Thread	Straight Thread	L	M	N	Flow Diameter (D)
270AB-4-2	1/4"	1/8"	7/16"-24	1.27"	.69"	.52"	.189"
270AB-4-4	1/4"	1/4"	7/16"-24	1.36"	.78"	.71"	.189"
270AB-6-2	3/8"	1/8"	17/32"-24	1.72"	.83"	.59"	.314"
270AB-6-4	3/8"	1/4"	17/32"-24	1.78"	.89"	.77"	.314"
270AB-6-6	3/8"	3/8"	17/32"-24	1.82"	.93"	.77"	.314"
270AB-8-6	1/2"	3/8"	11/16"-20	1.99"	1.03"	.82"	.408"
270AB-8-8	1/2"	1/2"	11/16"-20	2.09"	1.13"	1.01"	.408"
