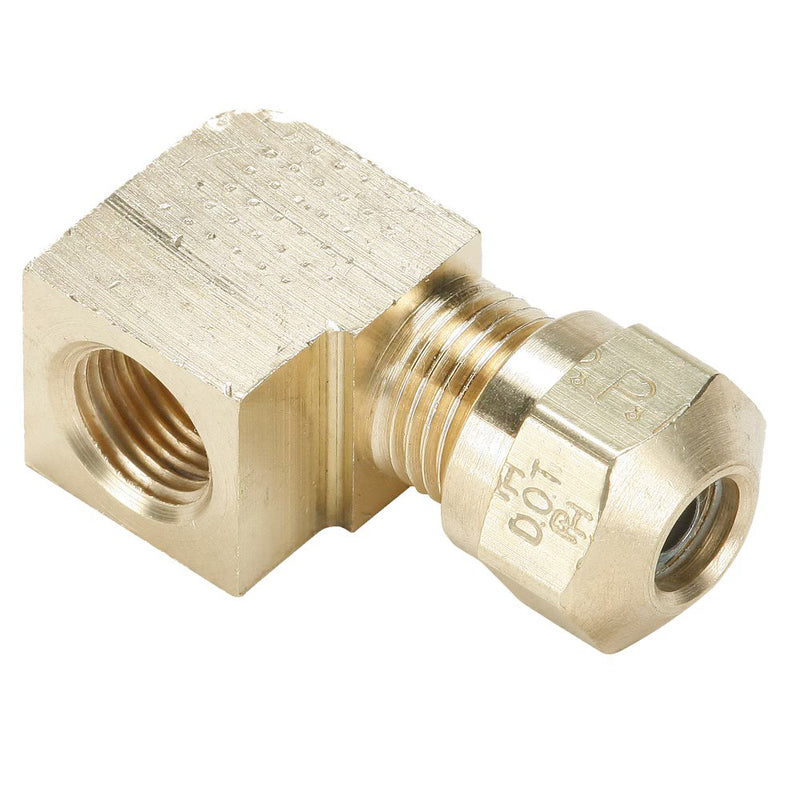

270NTA-4-2 by Parker | Air Brake–NTA® Fittings | 1/4" Tube Size x 1/8" Female Pipe Thread x 7/16" Thread | 90° Elbow | Brass | Pack of 10

270NTA-4-2 by Parker | Air Brake–NTA® Fittings | 1/4" Tube Size x 1/8" Female Pipe Thread x 7/16" Thread | 90° Elbow | Brass | Pack of 10

Save $8.32 Save $8.32
$91.48
$91.48 - $91.48
$91.48
$83.16
$83.16 - $83.16
$83.16

by Parker Hannifin
Air Brake–NTA® Fittings:Female Elbow 270NTA

Package Quantity: 10 Units

Specifications for Variant SKU: 270NTA-4-2 Parker | 10 |
Brand: Air Brake–NTA®
Series: 270NTA Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
270NTA-3-2* 3/16" 1/8" 5/16"-24 .96" .67" .52" .087"
270NTA-4-2 1/4" 1/8" 7/16"-24 1.02" .69" .52" .137"
270NTA-4-4 1/4" 1/4" 7/16"-24 1.11" .78" .71" .137"
270NTA-6-2 3/8" 1/8" 17/32"-24 1.29" .83" .58" .217"
270NTA-6-4 3/8" 1/4" 17/32"-24 1.35" .89" .77" .217"
270NTA-6-6 3/8" 3/8" 17/32"-24 1.39" .93" .77" .217"
270NTA-8-6 1/2" 3/8" 11/16"-20 1.55" 1.03" .82" .338"
270NTA-8-8 1/2" 1/2" 11/16"-20 1.65" 1.13" 1.01" .338"
270NTA-10-8 5/8" 1/2" 13/16"-18 1.70" 1.19" 1.07" .398"

*Meets D.O.T. FMVSS 571.106 specification. No applicable SAE specification for this tube size.
