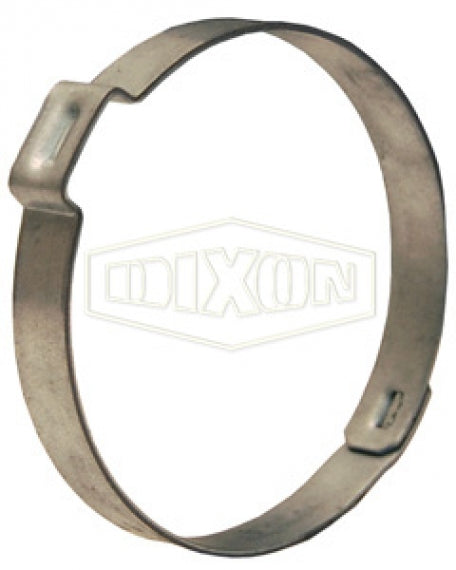

271 by Dixon Valve | Pinch-On Clamp | Single Ear | 0 .275" Band Width | 1-1/16" Nominal Size | Clamp Range: 0.945" Closed to 1.067" Open | Zinc Plated Steel

271 by Dixon Valve | Pinch-On Clamp | Single Ear | 0 .275" Band Width | 1-1/16" Nominal Size | Clamp Range: 0.945" Closed to 1.067" Open | Zinc Plated Steel | Box of 100

Save $21.33 Save $21.33
$53.33
$53.33 - $53.33
$53.33
$32.00
$32.00 - $32.00
$32.00

Dixon Valve
Pinch-On Clamps | Single Ear


Package Quantity: 100 EA

Specifications for Variant SKU: 271 Dixon | 100 |
Material(s): Zink-Plated Steel
Clamp Thickness: 0.03
Clamp Width: 0.25
Minimum Clamp I.D.: 0.945
Maximum Clamp I.D.: 1.067
Features:
  • Band width: .275"
  • Band thickness: .030"
Installation Tools:
  • Standard Jaw Clamp Tool 1098
  • Side Jaw Clamp Tool 1099
Zinc Plated Steel
Part Number		 304 Stainless Steel
Part Number		 Nominal Size Range
Closed Open
105 105R 3/8" 0.350" 0.413"
113 113R 7/16" 0.382" 0.445"
123 123R 15/32" 0.409" 0.484"
133 133R 1/2" 0.449" 0.524"
140 140R 35/64" 0.469" 0.551"
145 145R 9/16" 0.496" 0.571"
157 157R 5/8" 0.543" 0.618"
170 170R 11/16" 0.595" 0.669"
185 185R 23/32" 0.618" 0.728"
198 198R 3/4" 0.669" 0.780"
210 210R 13/16" 0.717" 0.827"
226 226R 7/8" 0.780" 0.890"
241 241R 15/16" 0.839" 0.949"
256 256R 1" 0.898" 1.008"
271 271R 1-1/16" 0.945" 1.067"
286 286R 1-1/8" 1.004" 1.126"
301 301R 1-3/16" 1.063" 1.185"
331 331R 1-5/16" 1.181" 1.303"
346 346R 1-3/8" 1.240" 1.362"
376 376R 1-15/32" 1.358" 1.480"
396 396R 1-9/16" 1.437" 1.559"
410 410R 1-5/8" 1.492" 1.614"
425 425R 1-11/16" 1.551" 1.673"
440 440R 1-23/32" 1.610" 1.732"
455 455R 1-3/4" 1.669" 1.791"
470 470R 1-13/16" 1.728" 1.850"
485 485R 1-7/8" 1.787" 1.909"
500 500R 1-15/16" 1.847" 1.969"
515 515R 2" 1.906" 2.028"
