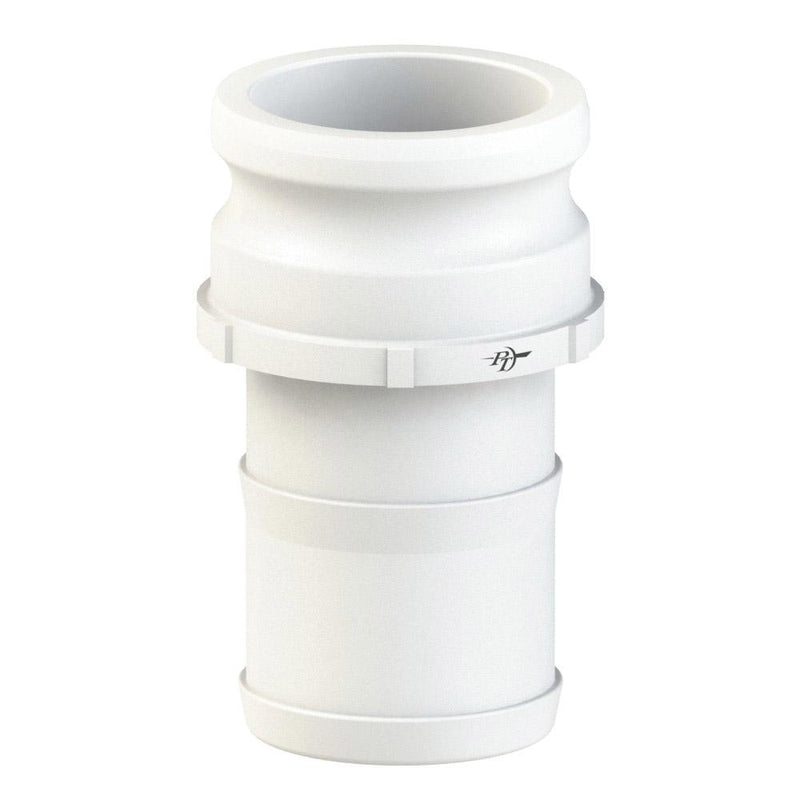

2770530 (30E) by PT-Coupling | Cam & Groove Fitting | Type E | 3" Adapter x 3" Hose Shank | Food Grade Polypropylene

2770530 (30E) by PT-Coupling | Cam & Groove Fitting | Type E | 3" Adapter x 3" Hose Shank | Food Grade Polypropylene

Save $8.56 Save $8.56
$23.08
$23.08 - $23.08
$23.08
$14.52
$14.52 - $14.52
$14.52

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Food Grade Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2770530 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3in Male Cam & Groove, 3in Hose Barb
Material(s): Food Grade Polypropylene
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Fair abrasion resistance.
  • Color: White
  • Use with water and other food grade applications.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Hose Shank
Size		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
07E 2770507 3/4" 3/4" 1.26" 3.78" 1.46" 0.53" 0.97" 100 PSI
10E 2770510 1" 1" 1.63" 4.30" 1.8" 0.88" 1.19" 100 PSI
15E 2770515 1-1/2" 1-1/2" 2.14" 5.10" 2.15" 1.19" 1.48" 100 PSI
20E 2770520 2" 2" 2.64" 5.75" 2.40" 1.68" 1.75" 100 PSI
30E 2770530 3" 3" 3.70" 6.88" 2.53" 2.62" 1.84" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
