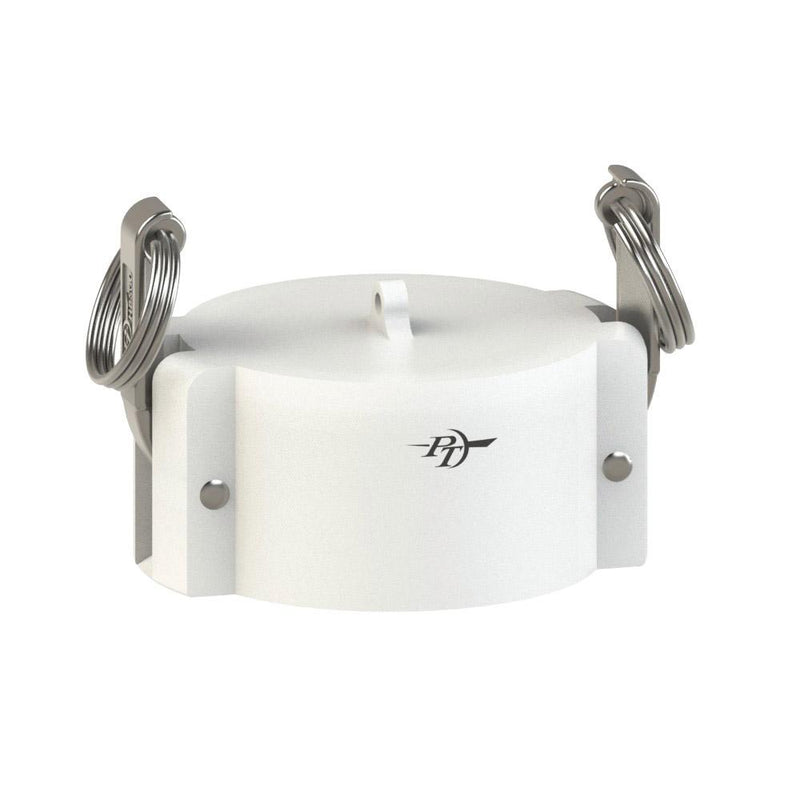

2771107 (07V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 3/4" Coupler Dust Cap | Food Grade Polypropylene

2771107 (07V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 3/4" Coupler | Food Grade Polypropylene

Save $5.40 Save $5.40
$14.53
$14.53 - $14.53
$14.53
$9.13
$9.13 - $9.13
$9.13

PT Coupling
Cam and Groove (Camlock) Dust Cap | Type V | Food Grade Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2771107 PT-Coupling
Cam Type: Type DC
Ends Configuration: 3/4in Female Cam & Groove
Material(s): Food Grade Polypropylene
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Fair abrasion resistance.
  • Color: White
  • Use with water and other food grade applications.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
07V 2771107 3/4" 4.51" 2.11" 1.35" 0.50" 0.97" 100 PSI
10V 2771110 1" 5.10" 2.44" 1.60" 0.62" 1.19" 100 PSI
12V 2771112 1-1/4" 6.86" 3.26" 1.89" 0.60" 1.44" 100 PSI
15V 2771115 1-1/2" 7.16" 3.56" 1.96" 0.86" 1.48" 100 PSI
20V 2771120 2" 7.54" 3.94" 2.25" 0.76" 1.75" 100 PSI
30V 2771130 3" 9.56" 5.46" 2.27" 1.03" 1.84" 50 PSI
40V 2771140 4" 10.66" 6.56" 2.34" 0.99" 1.87" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
