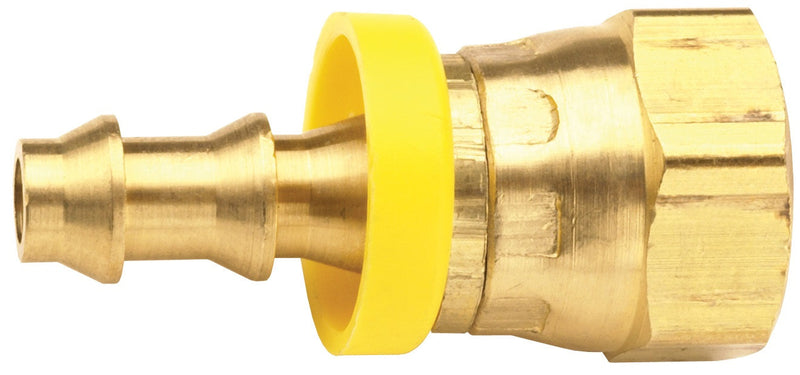

2780608C by Dixon Valve | Push-On Hose Barb Fitting with Ball Seat | 1/2" Female NPSM Swivel x 3/8" Hose ID | Brass

2780608C by Dixon Valve | Push-On Hose Barb Fitting with Ball Seat | 1/2" Female NPSM Swivel x 3/8" Hose ID | Brass

Save $3.74 Save $3.74
$9.35
$9.35 - $9.35
$9.35
$5.61
$5.61 - $5.61
$5.61

Dixon Valve
Push-on Hose Barb Fitting | Female NPSM Swivel x Hose Barb Ball Seat | Brass

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Specifications for Variant SKU: 2780608C Dixon
Series: 278 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-On Hose Barb, 1/2in Female NPSM
Material(s): Brass
Applicable Specs & Approvals: Swivel
Construction:
  • Ball seat type.
Material:
  • Fitting: Brass
  • Cap: Plastic. (Part Numbers Ending in CBC are Brass Caps)
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
  • Swivel is for assembly convenience only, not for live swivel applications.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Brass Part Number

 Previous
Part Number		 Hose I.D. Female NPSM
2780402C BPFS21 1/4" 1/8"
2780404C BPFS22 1/4" 1/4"
2780404CBC* - 1/4" 1/4"
2780406C BPFS23 1/4" 3/8"
2780406CBC* - 1/4" 3/8"
2780604C BPFS32 3/8" 1/4"
2780604CBC - 3/8" 1/4"
2780606C BPFS33 3/8" 3/8"
2780606CBC* - 3/8" 3/8"
2780608C BPFS34 3/8" 1/2"
2780808C BPFS44 1/2" 1/2"
2780808CBC* - 1/2" 1/2"
2780812C BPFS46 1/2" 3/4"
2781012C BPFS56 5/8" 3/4"
2781212C BPFS66 3/4" 3/4"
2781212CBC* - 3/4" 3/4"

* Brass cap on CBC parts.
