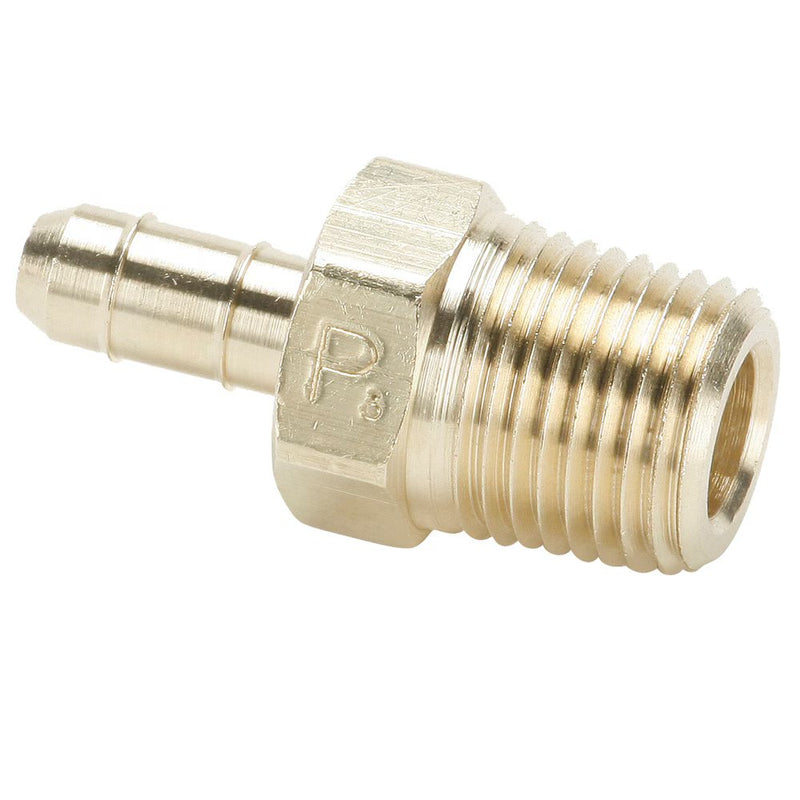

28-4-10X32 by Parker | Dubl-Barb® Fittings | 1/4" Tube OD x .170" Tube ID x 10-32" Male Pipe Thread | 1/4" Hex | .71" Length | Straight | Brass | Pack of 50

Save $11.09

$121.97

$121.97 - $121.97

$121.97

$110.88

$110.88 - $110.88

$110.88

by Parker Hannifin
Dubl-Barb® Fittings:Male Connector 28

Package Quantity: 50 Units

Quantity

Specifications for Variant SKU: 28-4-10X32 Parker \| 50 \|
Brand:	Dubl-Barb®
Series:	28 Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Vibration Resistance

Specification:
Product Features:	Compact One piece No clamp required Good vibration resistance
Markets:	Pneumatic Environmental control
Applications:	Pneumatic Systems Climate Control Humidifiers Filters
Temperature Range:	See Chart Below

Pressure Range:	See Chart Below

Compatible Tubing:	Polyethylene


Part Number	Tube OD	Tube ID	Pipe Thread	Hex (C)	L	Flow Diameter (D)
28-5/32-2	5/32"	.096"	1/8"	7/16"	.84"	.062"
28-4-1	1/4"	.170"	1/16"	3/8"	.93"	.120"
28-4-2	1/4"	.170"	1/8"	7/16"	.97"	.120"
28-4-4	1/4"	.170"	1/4"	9/16"	1.09"	.120"
28-4-10X32*	1/4"	.170"	10-32"	1/4"	.71"	.093"
28-6-2	3/8"	.250"	1/8"	7/16"	1.00"	.187"
28-6-4	3/8"	.250"	1/4"	9/16"	1.13"	.187"
28-8-4	1/2"	.375"	1/4"	9/16"	1.25"	.312"
28-8-6	1/2"	.375"	3/8"	11/16"	1.28"	.312"
28-8-8	1/2"	.375"	1/2"	7/8"	1.44"	.312"

*Straight thread
