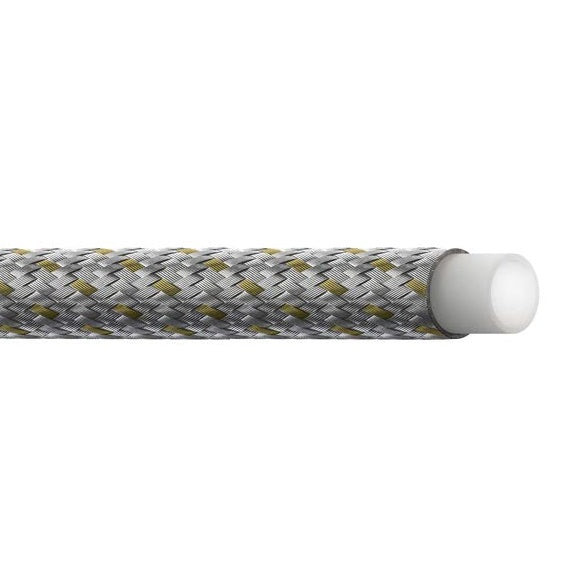

2807-10 Everflex by Danfoss | PTFE Hose | SAE 100R14A | 0.51" Hose ID | 0.63" Hose OD | Stainless Steel Braid

$27.72

Everflex by Danfoss
2807 Series | PTFE (Teflon) Hose

Danfoss' EverFlex hoses are the premier choice for hose products made from premium grade Teflon™ fluoropolymer for use in truck, chemical, hot melt, steam, packaging, paint, machinery, and many other demanding applications. EverFlex 2807-Series tube is reinforced with 304 stainless steel wire and all sizes are made from virgin Teflon™ fluoropolymer.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2807-10 Danfoss
Brand: Aeroquip
Series: 2807 Series
Hose Color(s): Metallic
Dash Size: -10
Internal Diameter: 0.51in
Outer Diameter: 0.63in
MAWP: 1500
Tubing Construction: Smooth Bore Non-Dissipating PTFE
Cover Construction: Stainless Steel Braid
Applicable Specs & Approvals: ABS,DNV,SAE 100R14A,USCG
Hose Properties:
Applications: Hot air, steam, compressor discharge.
Most chemical applications.
Not recommended for steam-cold water cycling.
SAE Ratings: Meets: SAE 100R14A, DNV, USCG, ABS
Other Ratings: N/A Tube: Extruded PTFE Tube
Reinforcement: N/A Cover: Single Layer Stainless Steel Wire Braid
Operating Parameters: -100°F to +500°F (-73°C to +260°C)
Steam 200 psi at +388°F max
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Vacuum Service
mm in mm in bar psi bar psi mm in kg/m lbs/ft kPa in. Hg
2807-3 3,6mm 0.14" 6,4mm 0.25" 210,0 bar 3000 psi 840,0 bar 12000 psi 38,1mm 1.50" 0,06 kg/m 0.04 lbs/ft 94,8 kPa 28 In/Hg
2807-4 4,8mm 0.19" 7,6mm 0.30" 210,0 bar 3000 psi 840,0 bar 12,000 psi 50,8mm 2.00" 0,09 kg/m 0.06 lbs/ft 94,8 kPa 28 In/Hg
2807-5 6,6mm 0.26" 9,4mm 0.37" 210,0 bar 3000 psi 840,0 bar 12,000 psi 76,2mm 3.00" 0,12 kg/m 0.08 lbs/ft 94,8 kPa 28 In/Hg
2807-6 8,1mm 0.32" 10,9mm 0.43" 175,0 bar 2500 psi 700,0 bar 10,000 psi 101,6mm 4.00" 0,15 kg/m 0.10 lbs/ft 94,8kPa ‡ 28 In/Hg ‡
2807-8 10,7mm 0.42" 13,7mm 0.54" 140,0 bar 2000 psi 560,0 bar 8000 psi 133,4mm 5.25" 0,18 kg/m 0.12 lbs/ft 94,8 kPa ‡ 28 In/Hg ‡
2807-10 13,0mm 0.51" 16,0mm 0.63" 105,0 bar 1500 psi 420,0 bar 6000 psi 165,1mm 6.50" 0,24 kg/m 0.16 lbs/ft 94,8 kPa ‡ 28 In/Hg ‡
2807-12 16,3mm 0.64" 19,3mm 0.76" 84,0 bar 1200 psi 335,0 bar 4800 psi 196,9mm 7.75" 0,27 kg/m 0.18 lbs/ft 94,8 kPa ‡ 28 In/Hg ‡
2807-16 22,4mm 0.88" 26,2mm 1.03" 70,0 bar 1000 psi 280,0 bar 4000 psi 228,6mm 9.00" 0,39 kg/m 0.26 lbs/ft 40,6 kPa ‡ 12 In/Hg ‡
2807-20 28,4mm 1.12" 32,8mm 1.29" 43,0 bar 625 psi 175,0 bar 2500 psi 406,4mm 16.00" 0,51 kg/m 0.34 lbs/ft 40,6 kPa ‡ 12 In/Hg ‡

Warning: These hoses can be used to convey hazardous chemicals, steam, hot liquids or other dangerous materials which can cause death, serious bodily injury including burns, pressure wounds or chemical exposure if released accidentally. They should, therefore, only be handled or worked on by personnel properly trained in the safe handling of the materials or chemicals conveyed in the hoses.

‡ Maximum negative pressure for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06 and larger hose is recommended for tube support where extended or continuous service at high temperature together with low or negative pressure is expected.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
