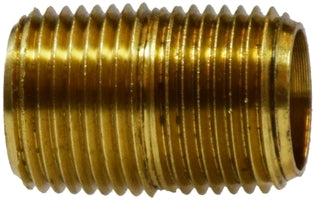

28135 (28-135) Midland Close Nipple - 3/4" Male NPTF - Brass

28135 by Midland | Close Nipple | 3/4" Male NPTF | Brass

Save $1.81 Save $1.81
$4.52
$4.52 - $4.52
$4.52
$2.71
$2.71 - $2.71
$2.71

Midland Industries
Brass Fitting - Pipe Thread - Close Nipple

Inventory @ Manufacturers Warehouse: 4419 Units
Specifications for Variant SKU: 28135 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/4in Male NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
112 165 215PN 3326 112A 112B
Part Number Thread Size
Male NPTF 		A Approx. Weight
(Lbs.)
28131
(28-131)		 1/8" 0.75" 0.01
28132
(28-132)		 1/4" 0.88" 0.02
28133
(28-133)		 3/8" 1.00" 0.05
28134
(28-134)		 1/2" 1.12" 0.06
28135
(28-135)		 3/4" 1.31" 0.11
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
