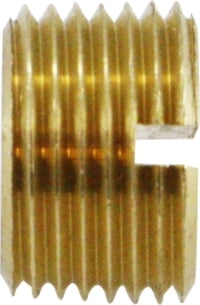

28175 (28-175) Midland Slotted Head Plug - 1/4" Male NPTF - Brass

28175 by Midland | Slotted Head Plug | 1/4" Male NPTF | Brass

Save $0.14 Save $0.14
$0.90
$0.90 - $0.90
$0.90
$0.76
$0.76 - $0.76
$0.76

Midland Industries
Brass Fitting - Pipe Thread - Slotted Head Plug

Inventory @ Manufacturers Warehouse: 24 Units
Specifications for Variant SKU: 28175 Midland
Ends Configuration: 1/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
117 220P 3150 117A 117B
Part Number Thread Size
Male NPTF 		A Approx. Weight
(Lbs.)
28174
(28-174)		 1/8" 0.31" 0.01
28175
(28-175)		 1/4" 0.42" 0.02
28176
(28-176)		 3/8" 0.45" 0.05
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
