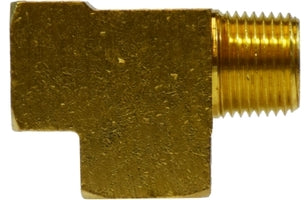

28245 (28-245) Midland Street Tee/ Service Tee/ Male Run Tee - 1/8" Female NPTF x 1/8" Male NPTF x 1/8" Female NPTF - Brass

28245 by Midland | 1/8" Female NPTF x 1/8" Male NPTF x 1/8" Female NPTF | Service (Street ) Run Tee | Brass

Save $1.29 Save $1.29
$3.22
$3.22 - $3.22
$3.22
$1.93
$1.93 - $1.93
$1.93

Midland Industries
Brass Fitting - Pipe Thread - Street Tee/ Service Tee/ Male Run Tee

Inventory @ Manufacturers Warehouse: 2766 Units
Specifications for Variant SKU: 28245 Midland
Shape (Orientation): Tee
Ends Configuration: 1/8in Female NPTF, 1/8in Male NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: SAE# 130424 Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
127
Part Number Thread Size
Female NPTF x Male NPTF x Female NPTF		 A B C Approx. Weight
(Lbs.)
28245
(28-245)		 1/8" 0.55" 0.66" 0.56" 0.08
28246
(28-246)		 1/4" 0.78" 0.91" 0.68" 0.17
28247
(28-247)		 3/8" 0.84" 0.97" 0.81" 0.22
28248
(28-248)		 1/2" 1.09" 1.25" 1.00" 0.40
28249
(28-249)		 3/4" 1.16" 1.39" 1.25" 0.60
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
