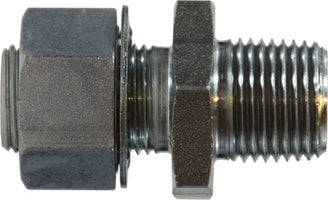

28310 (28-310) by Midland | Female x Male Pipe Bulkhead Fitting | 1/4-18 Female NPTF x 3/4-16 Male UNS x 1/2-14 NPTF | 2.53" Length | Straight | Steel

Save $3.56

$32.00

$32.00 - $32.00

$32.00

$28.44

$28.44 - $28.44

$28.44

Midland Industries
Brass Fitting - Bulkhead Fitting - Female x Male Pipe Bulkhead Fitting

Quantity

Specifications for Variant SKU: 28310 Midland
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	ASA, ASME, SAE

Applications:	Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems	Used With:	Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME and SAE
Vibration:	Fair Resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C)
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice.	Lead Free:	Not Lead Free

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14	1-11-1/2
Working Pressure	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1000 PSI	1000 PSI
Thread OD	1/4"	3/8"	1/2"	5/8"	3/4"	1"	1-1/4"


Part Number	A	B	C	Length (in.)
28309 (28-309)	1/4-18 NPTF	3/4-16 UNS	1/2-14 NPTF	2.16"
28310 (28-310)	1/4-18 NPTF	3/4-16 UNS	1/2-14 NPTF	2.53"
