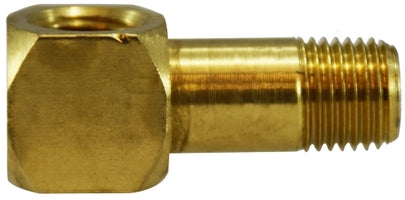

28330 (28-330) Midland Long Street 90° Elbow (D.O.T. Approved) - 1/4" Female NPTF x 1/4" Male NPTF x 1-11/16" - Brass

28330 by Midland | D.O.T. Approved | 1/4" Female NPTF x 1/4" Male NPTF x 1-11/16" | 90° Long Street Elbow | Brass

Save $2.90 Save $2.90
$26.10
$26.10 - $26.10
$26.10
$23.20
$23.20 - $23.20
$23.20

Midland Industries
Brass Fitting - Pipe Thread - Long Street 90° Elbow (D.O.T. Approved)

Inventory @ Manufacturers Warehouse: 51 Units
Specifications for Variant SKU: 28330 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female NPTF, 1/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Part Number Thread Size
Female NPTF x Male NPTF 		A B Approx. Weight
(Lbs.)
28440
(28-440)		 1/8" 1-3/16" 0.50" 0.06
28441
(28-441)		 1/8" 1-7/16" 0.50" 0.06
28442
(28-442)		 1/8" 1-11/16" 0.50" 0.06
28443
(28-443)		 1/8" 1-7/8" 0.50" 0.16
28328
(28-328)		 1/4" 1-3/16" 0.75" 0.12
28329
(28-329)		 1/4" 1-7/16" 0.75" 0.14
28330
(28-330)		 1/4" 1-11/16" 0.75" 0.15
28333
(28-333)		 3/8" 1-3/4" 0.87" 0.22
